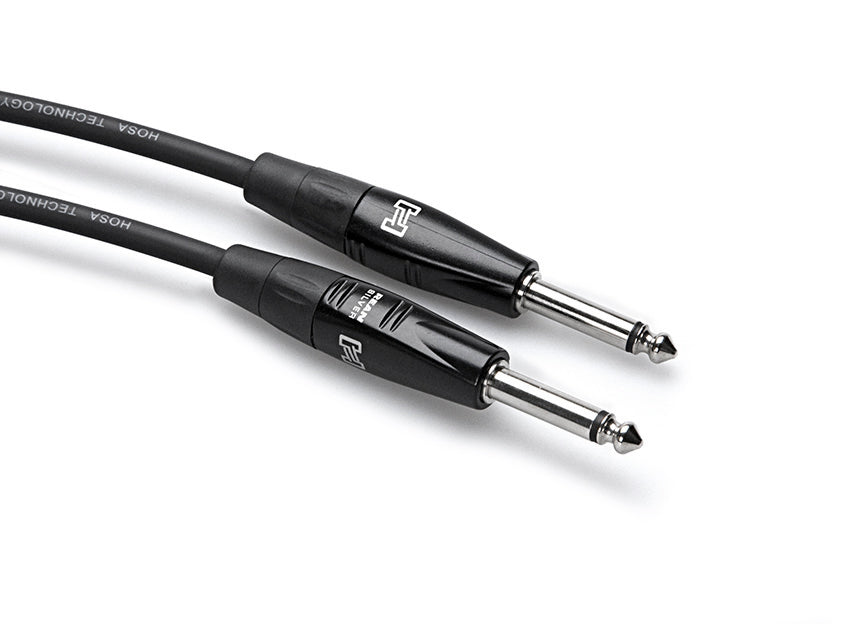

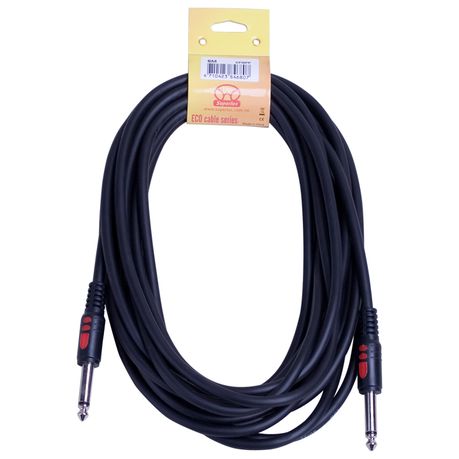

- 3m Instrument Signal Cable
- Dual straight 6.3 mm (1/4″) mono plugs
- AWG#24, cross-sectional area 0.20mm²
Length: 3m
Connectors: Dual straight 6.3 mm (¼”) mono phone plugs
Conduct Area: 0.13 mm², AWG#26
Composition of conductor (Diameter: mm): 10×0.12 mm bare copper
Conductor isolation: PE
Composition of cores: 1 cores
Screen: spiral wound Aluminum foil
Overall jacket: PVC, black
Overall diameter: 6±0.2 mm
Weight: 45 g/m
Working temperature(mobile): -15C~+90°C
Working temperature(fixed): -20C~+90°C
Conductor Resistance: 0.84 Ω
Capacity (cond./cond.): 35 pF/m
Capacity (cond./screen): 80 pF/m
Test Voltage: 400 V
