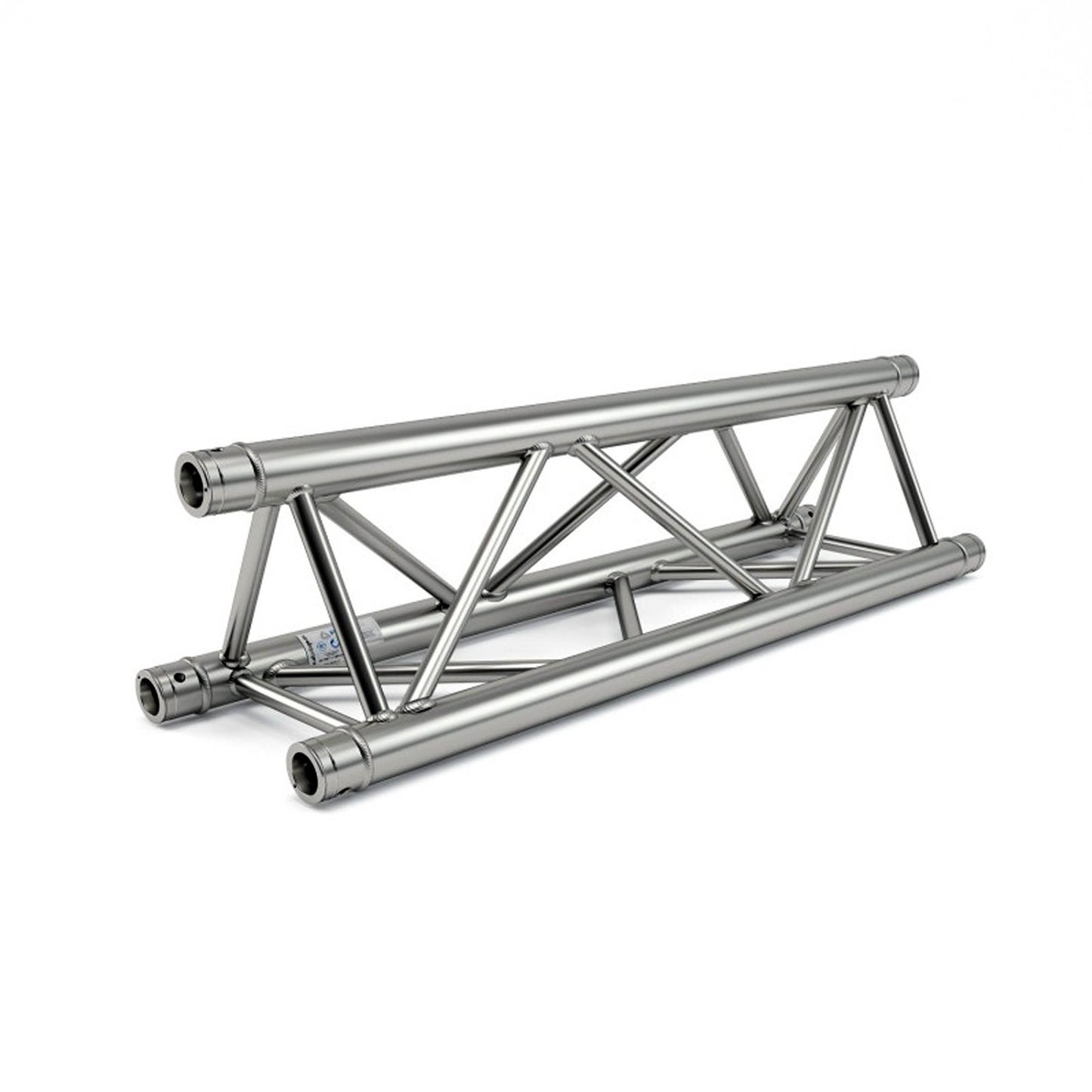

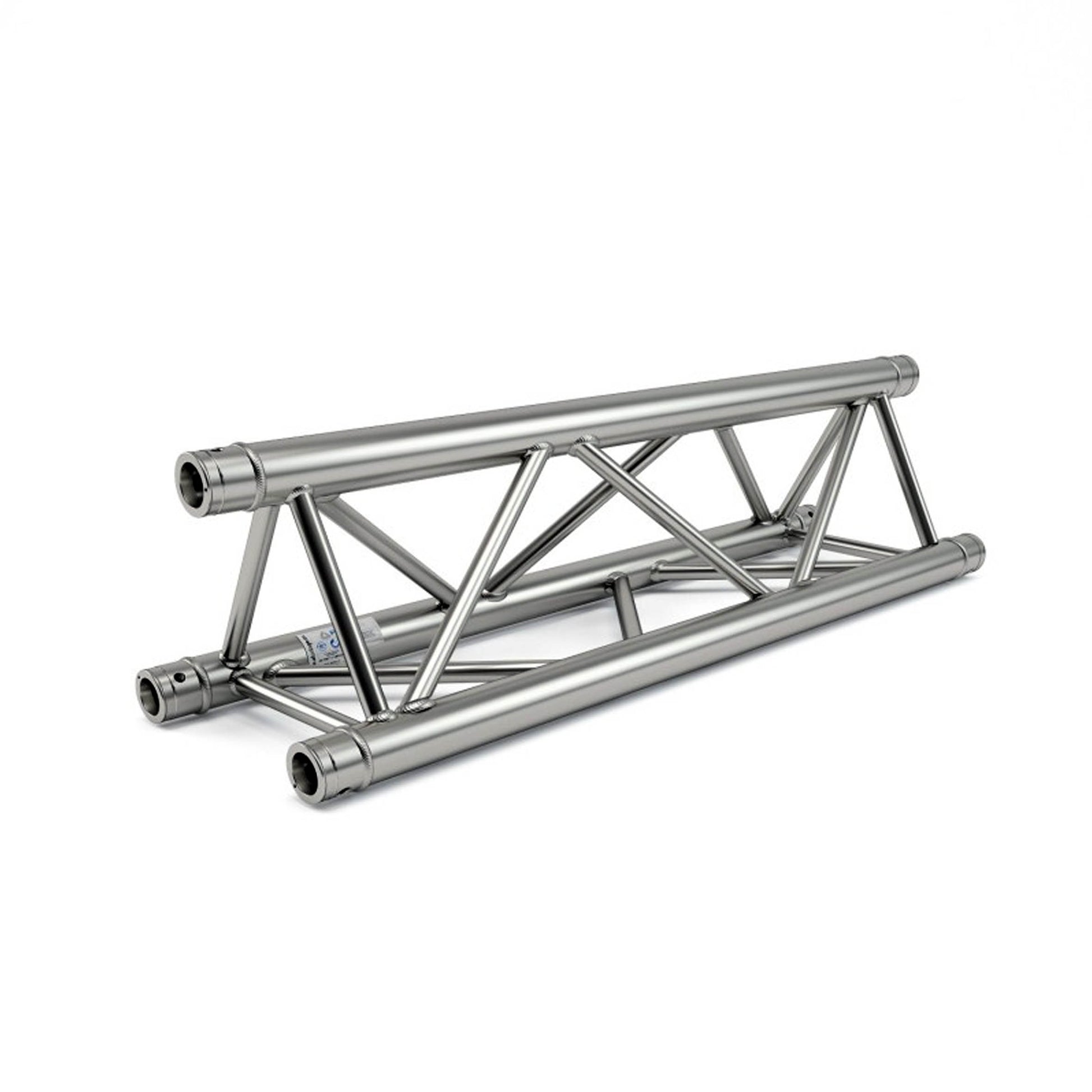

ALUSTAGE W.AL33150 TRIO 290 1.5M TRUSS

System 290 is made of main tube 50x2mm and braces 20x2mm. It has got SZ02.10 connection.Thanks to their spatial design, the aluminium trusses look attractive and are very strong. They can be arranged in different ways and are successfully used as elements of stage roofs, trade fair structures, exposition structures, big screen structures, LED display screen and projection screen support frames, lighting “gates” and sound “gates”, as well as frameworks of advertising banners or stage decorations. Each truss is of the highest quality which is confirmed by ISO DIN 4113  and TÜV certificate granted to our company. Each element is thoroughly inspected.

Width: 290 mm

Depth: 290 mm

Lenght: 1,5m

Material: Aluminium EN AW-6082 T6

Braces: 20×2 mm

Diameter of the pipe: 50×2 mm
