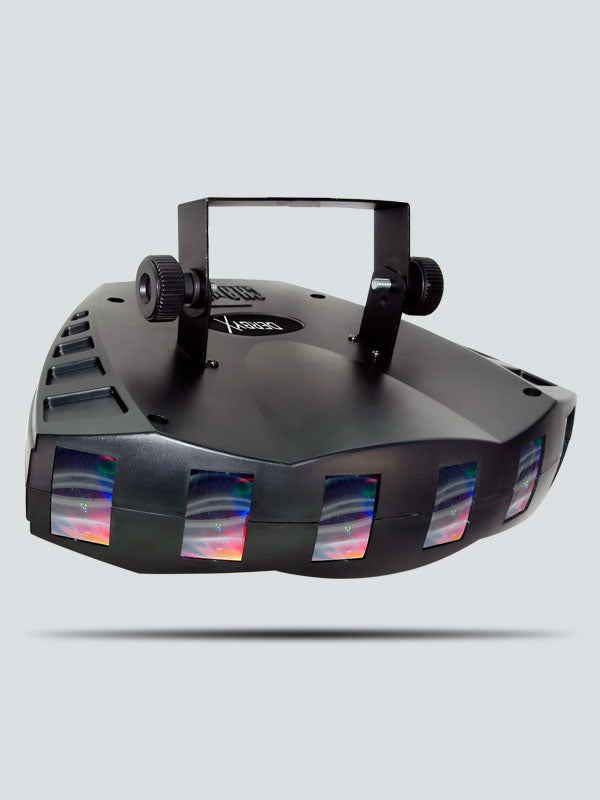

The Derby X is a DMX-512 LED derby effect light, featuring individual control of all 6 LED clusters. Additional features include blackout/static/strobe, built-in automated and sound activated programs, and linkable power for up to 27 units.
Specifications:
- DMX Channels:8
- DMX Connectors:3-pin XLR
- Light Source:90 LEDs (30 red, 30 green, 30 blue) 1 W, (96 mA), 50,000 hours life expectancy.
- Strobe Rate:0 to 26 Hz
- Coverage Angle:96°
- Power Linking:62 units @ 120 V; 94 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 10 W, 0.2 A @ 120 V, 60 Hz
- 10 W, 0.1 A @ 230 V, 50 Hz
- Weight:4 lb (2 kg)
- Size:11.9 x 15 x 7.4 in (302 x 382 x 187 mm)
- Approvals:CE, UKCA, RoHS
- Cable Length: 5 ft (1.5 m)
- Optional Controllers: IRC-6
