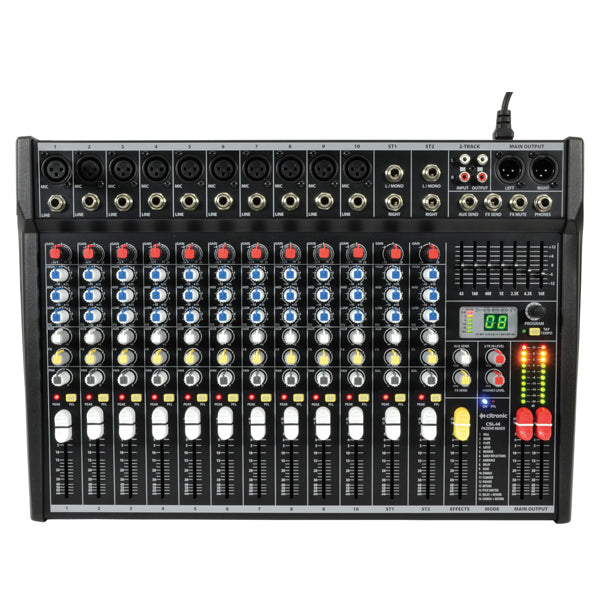

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.
Power supply: 230Vac, 50Hz (IEC)
Phantom power: +48V (XLR inputs)
Power consumption: 25W
Fuse: T1AL
Input level: +24dBu
Output level : line+26dBu
Frequency response: 20Hz-30kHz (0.5dB)
CMRR>74dB (mic 1kHz)
THD: +N<0.01% (channel to main out)
Crosstalk: >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
EQ: high: 12kHz ±15dB shelving
EQ: mid: 2.5kHz ±15dB band pass
EQ: low: 80Hz ±15dB shelving
Input impedance : mic (balanced): 2k Ohms
Input impedance : line (balanced): 10k Ohms
Sensitivity : mic: -60 to +14dBu
Sensitivity : line: -40 to +14dBu
2-track: 2 x RCA in & out (-2dBu)
Effects16 program DSP: (24-bit sigma-delta, 40kHz)
Output impedance: <75 Ohms
Headphone output: 6.3mm jack, 30-600 Ohms
Inputs : mic/line : 10 x balanced XLRF/TRS jack
Dimensions: 475 x 320 x 107mm
Weight: 4.5kg
