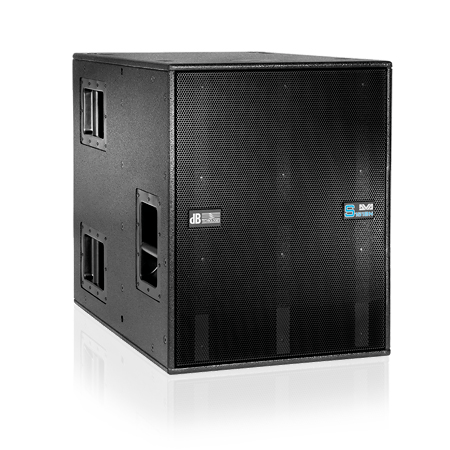

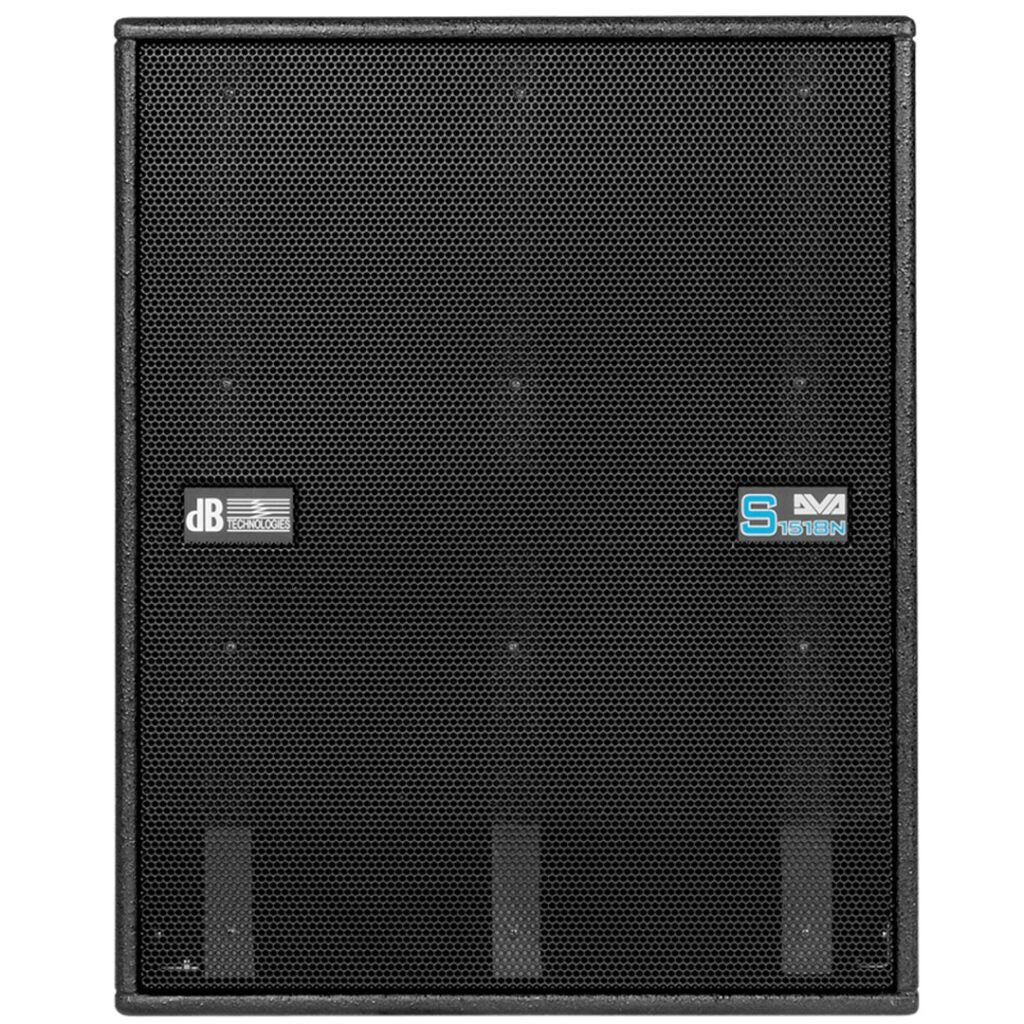

dB Technologies DVA S1518N 18″ Bandpass Subwoofer

The DB Technologies DVA S1518N is a powerful 18" bandpass subwoofer offering a 1500W digital power amp, integrated DSP, RDNet link, and versatile rigging options. Its advanced design delivers tight bass, perfect for seamless transitions with satellite systems, making it ideal for various setups.

Specifications:

• Speaker Type: Active Bandpass Subwoofer
• Frequency Response: 39 – 120 Hz (+/- 3 dB)
• Max SPL: 138 dB
• Directivity: Omnidirectional (Cardioid option with DSP)
• LF Driver: 18″ woofer with 4″ voice coil
• Amplifier Technology: Digipro® G2
• Amplifier Class: Class D
• Power Supply: 1.5 kW SMPS
• LF Amp Power: 1500W RMS
• Cooling: Convection
• DSP: 56-bit
• AD/DA Converter: 24-bit / 96 kHz
• System Presets: X-Over, Delay
• Phase Control: 0°, 180°
• Limiter: RMS, Peak, Thermal
• Delay Option: 0-4.5 ms internal
• Crossover Frequency: 75-120 Hz (adjustable in 5 Hz steps)
• LF-Xover Out Slope: 24 dB/Octave
• Housing Material: Multiplex plywood
• Housing Design: Rectangular
• Handles: 3 per side
• Rigging Points: SRK10 fly kit, 2 pick points for DRK10/20 rigging frames
• Pole Mount: M20
• Accessories: Dolly, wheels (100mm), dust cover, rain cover
• Dimensions (W x H x D): 515 mm x 640 mm x 720 mm (20.6 in x 25.6 in x 28.8 in)
• Weight: 46 kg (101.41 lbs)
