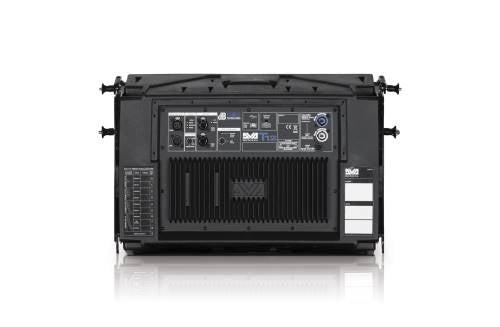

dB Technologies DVA T12 12″ Active Line Array.

The DB Technologies DVA T12 is an advanced active line array system featuring a 12” woofer, dual 6.5” midrange drivers, and three 1” HF drivers. With a powerful 1,410 watts output, it provides exceptional sound quality for large venues. The compact design and integrated RDNet connectivity ensure easy setup and versatile applications.

Specifications:

Technical Data:

• Speaker Type: 3-Way Active Line Array Module
• Frequency Response (-6dB): 60 – 19,000 Hz
• Max SPL (One Unit): 136 dB
• Directivity: 100° x 10° (Single Unit)
• Horn: Integrated CD Horn

Drivers:

• Low Frequency (LF):
  • Driver Size: 12″
  • Type: Neodymium
  • Voice Coil: 3″
• Mid Frequency (MF):
  • Driver Size: 2 x 6.5″
  • Type: Neodymium
  • Sealed Basket: Yes
  • Phase Plug: Yes
  • Horn Loaded: Yes
  • Voice Coil: 2″
• High Frequency (HF):
  • Driver Size: 3 x 1″
  • Voice Coil: 1.4″

Amplifier:

• Amp Technology: Digipro® G2
• Amp Class: Class D
• HF Amp Power: 350 W RMS
• MF Amp Power: 350 W RMS
• LF Amp Power: 710 W RMS
• Cooling: Convection

Processor:

• Controller: DSP 56 bit
• AD/DA Converter: 24 bit / 96 kHz
• System Presets: 8 (including HF/Low-mid correction)
• Limiter: Dual Active Limiter
• Crossover Frequency MF-HF: 1800 Hz (Slope: 24 dB/Octave)
• Crossover Frequency LF-MF: 420 Hz (Slope: 24 dB/Octave)

Input/Output:

• Signal Input: 1 x XLR Female (Balanced)
• Signal Output: 1 x XLR Male (Balanced)
• Network: RDnet remote control RJ45 connector IN/OUT
• Power Socket: 1 x Powercon In, 1 x Powercon Out
• Voltage Range: 90 – 240 V

Mechanics:

• Housing: Polypropylene (PP) with Aluminium Reinforcement
• Housing Design: Trapezoidal (10°)
• Rain Cover: Included
• Rigging Points: Integrated rigging hardware

Dimensions and Weight:

• Width: 580 mm (23.2 in)
• Height: 386 mm (15.44 in)
• Depth: 430 mm (17.2 in)
• Weight: 29.9 kg (63.93 lbs)
