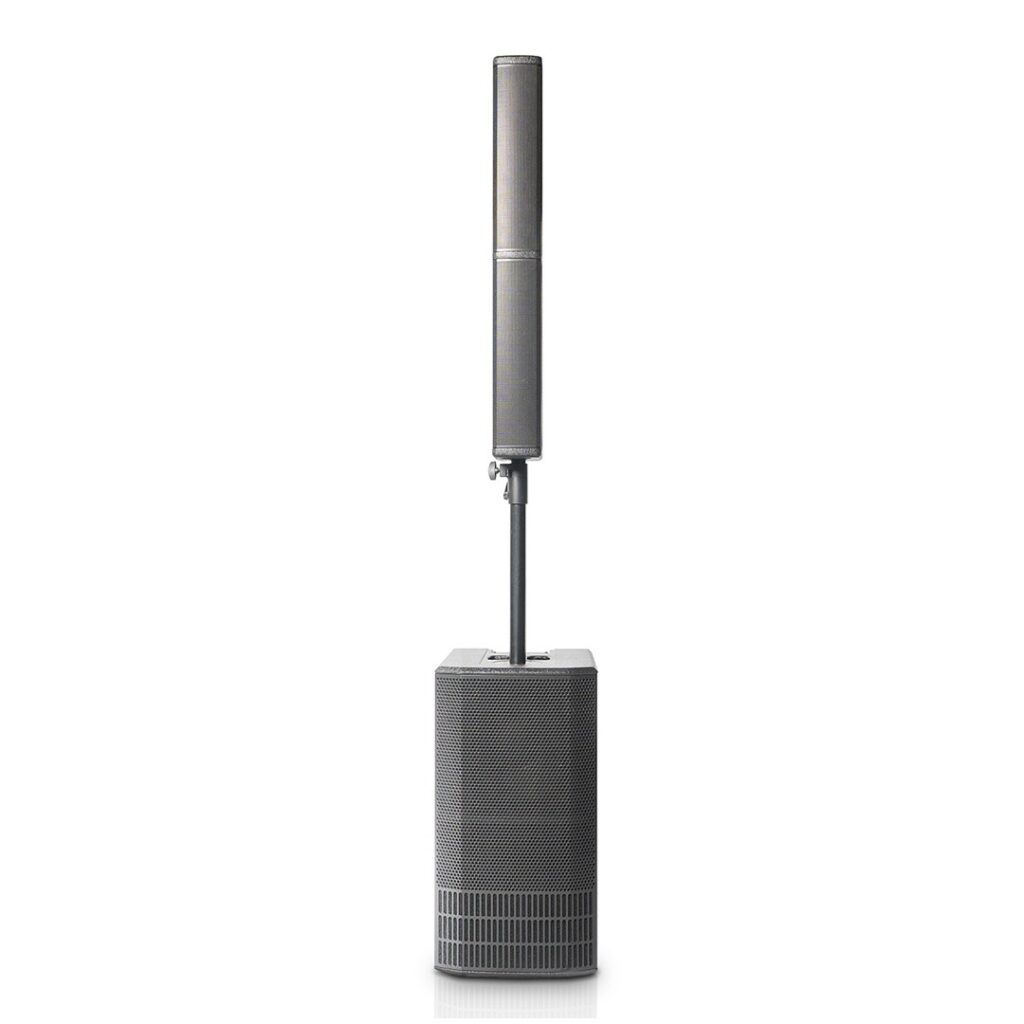

dB Technologies ES1002 Column PA System & Bags

The DB Technologies ES1002 Column PA System delivers powerful performance with an impressive peak output of 1800 watts. This compact and lightweight system features a bi-amped design, ensuring exceptional sound quality for musicians and DJs. Its innovative phase-plug technology enhances intelligibility, while eight EQ presets offer versatile sound customization for various applications. With durable plywood construction and road-ready design, the ES1002 is perfect for any performance setting.

Specifications:

• Speaker Type: Bi-Amped Mono Column System
• Frequency Response [-10dB]: 43 – 20,000 Hz
• Max SPL: 130.7 dB
• Mid-High Frequency Drivers: 8 x 4” Neodymium
• Low Frequency Drivers: 2 x 12”
• Directivity (HxV): 97° x 40°
• Amplifier Technology: Digipro® G3
• Amplifier Class: Class-D
• Power Amplifier Peak: 1800 W
• Controller: DSP 24 Bit/48 kHz
• System Presets: Flat, Bass Boost, Bass Reduction, Playback, Speech, Long Throw, HPF 80 Hz, HPF 120 Hz
• Limiter: Dual Active (Peak, RMS, Thermal)
• Controls: DSP Rotary Encoder, Volume Controls, MIC/LINE Switch
• Crossover Frequency (LF-HF): 160 Hz

Input Connections:

• Mains Connection: VDE
• Signal Input: 1 x Combo (XLR/Jack) balanced/unbalanced input (Mic/Line), 1 x RCA stereo input
• Signal Output: 1 x XLR balanced output with aux volume, 1 x Speakon to top

Mechanical Specifications:

• Housing (Subwoofer): Black Painted Plywood
• Housing (Tops): Multiplex Plywood
• Handles: 3 (1 on top, 1 each side on sub)
• Pole Mount: 36 mm (M20 threaded hole)

Dimensions:

• Width (Top): 110 mm (4.33 in)
• Height (Top): 905 mm (35.63 in)
• Depth (Top): 160 mm (6.3 in)
• Width (Subwoofer): 360 mm (14.17 in)
• Height (Subwoofer): 680 mm (26.77 in)
• Depth (Subwoofer): 545 mm (21.46 in)
