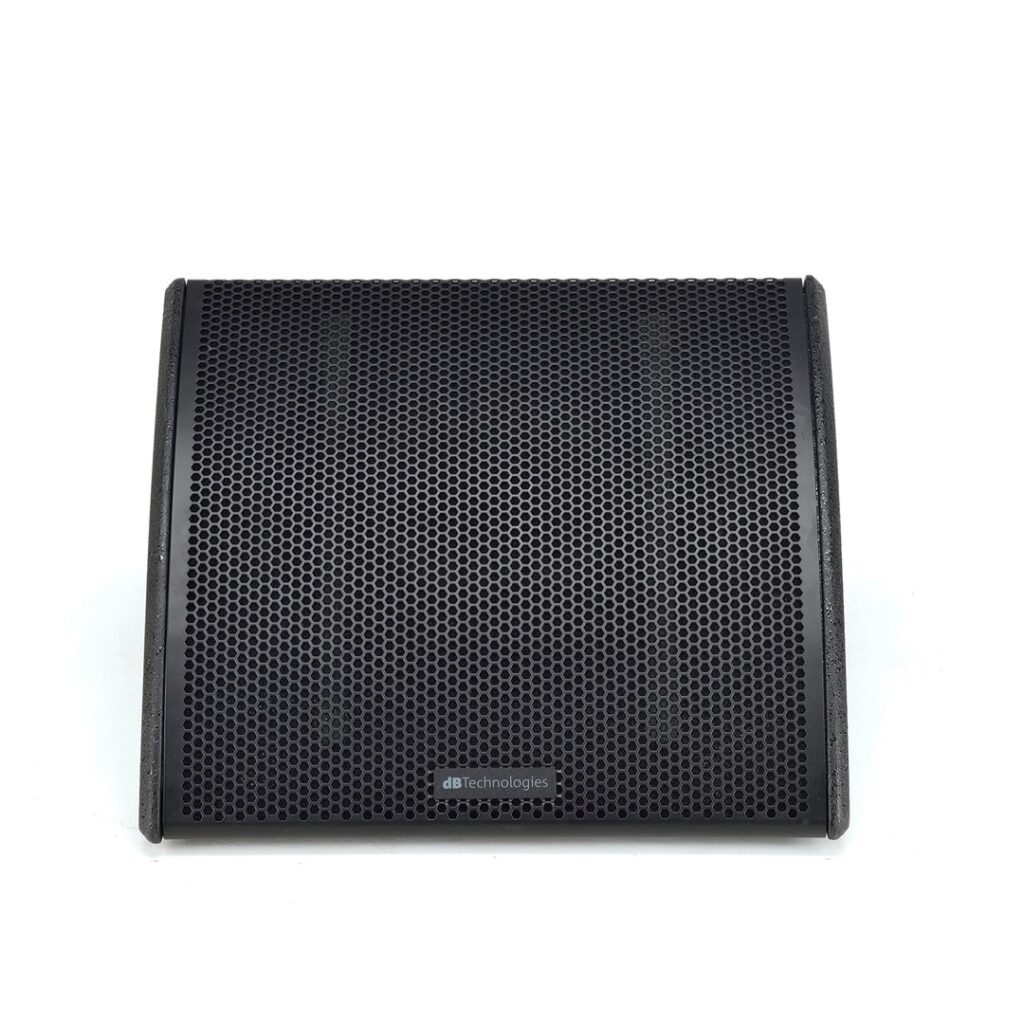

dB Technologies FMX12 12″ Active Stage Monitor

The DB Technologies FMX12 is a powerful 12-inch active 2-way stage monitor designed for professional audio performance. Featuring a coaxial configuration, linear phase FIR filters, and a rotatable horn for versatile sound dispersion, it ensures crystal-clear audio and precise directivity. With a robust 600 RMS Class D amplifier and integrated handle, the FMX 12 offers reliability and convenience for any live performance.

Specifications:

• Speaker Type: 2-Way Active Coaxial Stage Monitor
• Acoustical Data:
  • Frequency Response: [-10 dB] 52 Hz – 19 kHz
  • Max SPL: 128 dB
  • HF Driver: 1″ with 1.3″ voice coil
  • Directivity: 60° (horizontal) x 90° (vertical)
  • Horn: Rotatable
  • LF Driver: 12″ with 2″ voice coil
• Amplifier:
  • Amp Class: Class D
  • Peak Power: 1200 W
• Processor:
  • Controller: DSP 28/56 bit
  • AD/DA Converter: 24 bit / 48 kHz
  • System Presets: 8 presets
  • Limiter: Peak, RMS, Thermal
  • Advanced DSP Function: FIR Filters
  • Crossover Frequency: 1740 Hz
  • Slope (LF/HF): 24 dB/oct
• Mechanics:
  • Housing: Plywood
  • Housing Design: Multifunctional
  • Handles: 1 integrated on bottom side
  • Pole Mount: 36 mm
  • Dimensions:
    • Width: 465 mm (18.30 in)
    • Height: 297 mm (11.69 in)
    • Depth: 444 mm (17.48 in)
  • Weight: 13.9 kg
