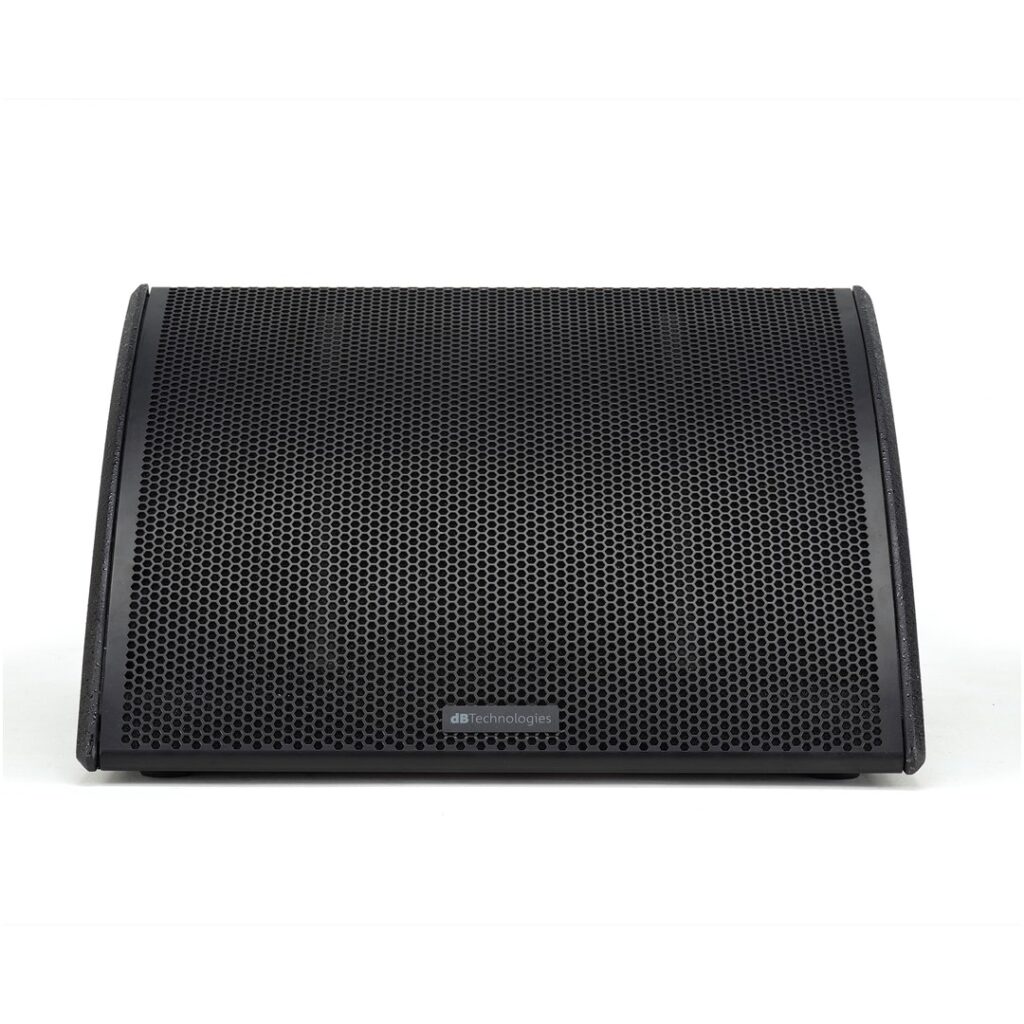

dB Technologies FMX15 15″ Active Stage Monitor

The DB Technologies FMX 15 is a powerful 15" active stage monitor designed for live performances. It features a coaxial design for optimal sound dispersion, a 1200 W Class D amplifier, and advanced DSP with linear phase FIR filters. With a frequency response of 46 Hz to 19 kHz and rotatable horn, it delivers exceptional audio clarity and adaptability for any performance environment.

Specifications:

Technical Data

• Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical Data

• Frequency Response: 46 – 19,000 Hz
• Max SPL: 128 dB
• HF Driver: 1″, 1.3″ voice coil
• Directivity: 60° x 90°
• Horn: Rotatable
• LF Driver: 15″, 2″ voice coil

Amplifier

• Amp Class: Class D
• Peak Power: 1200 W

Processor

• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit / 48 kHz
• System Presets: 8 presets
• Limiter: Peak, RMS, Thermal
• Advanced DSP Function: FIR Filters
• Crossover Frequency: 1740 Hz
• Slope LF/HF: 24 dB/oct

Mechanics

• Housing: Plywood
• Housing Design: Multifunctional
• Handles: 1 integrated on bottom side
• Pole Mount: 36 mm

Dimensions

• Width: 580 mm (22.83 in)
• Height: 340 mm (13.38 in)
• Depth: 500 mm (19.68 in)
• Weight: 16.9 kg
