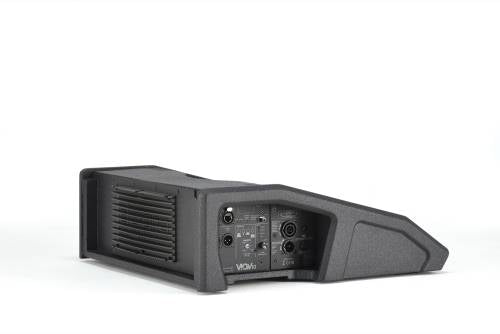

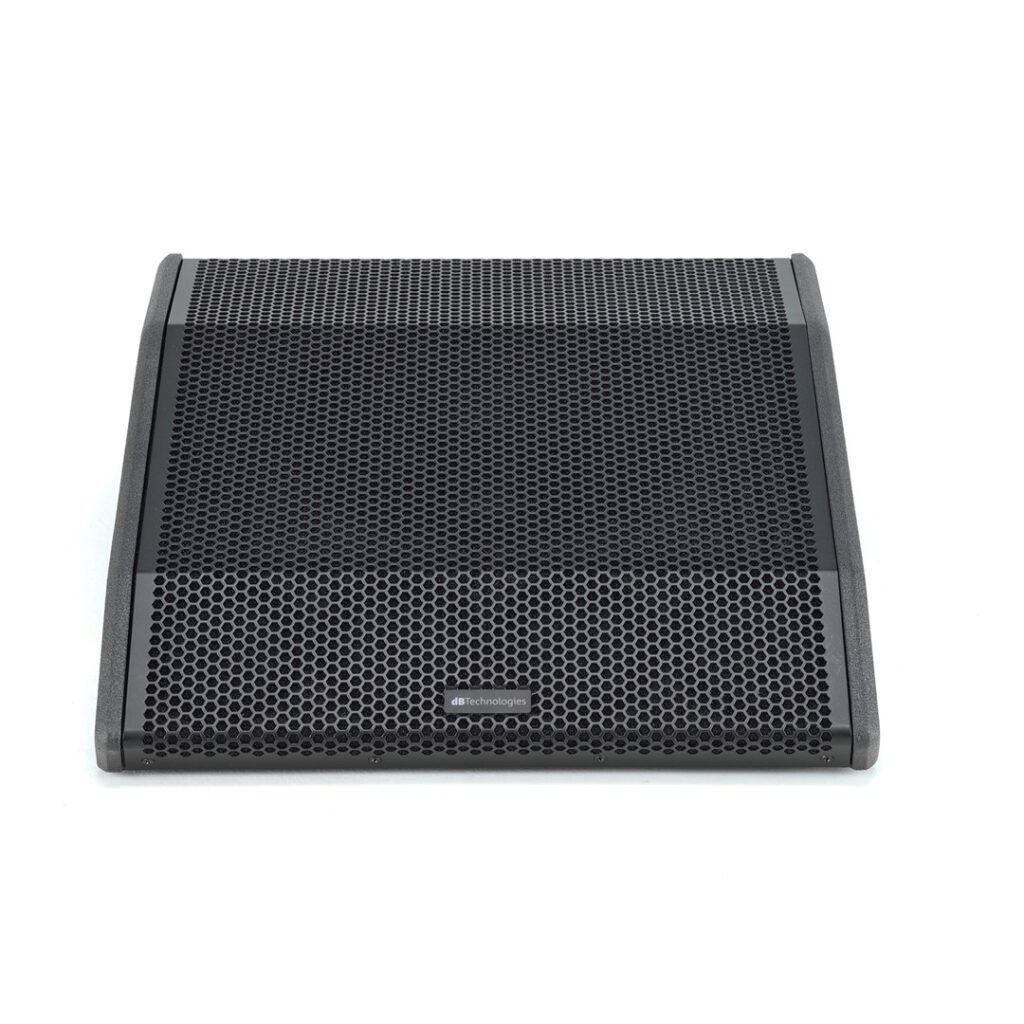

dB Technologies VIO W10 Ultra-Slim 10″ Wedge Speaker

The dB Technologies VIO W10 Ultra-Slim 10" Stage Monitor provides high-performance sound in a discreet, compact design. With advanced DSP control, RD-Net/Aurora Net remote monitoring, and multiple preset configurations, it delivers professional audio for studios, theaters, and events. Its sleek wooden cabinet design makes it easy to integrate into any environment.

Specifications:

Technical Data:

• Speaker Type: 2-Way Active Wedge Monitor

Acoustical Data

• Usable Bandwidth [-10 dB]: 58 – 15,000 Hz
• Frequency Response [-6 dB]: 68 – 14,000 Hz
• Max SPL: 126 dB
• HF Drivers: 4 x 4″ Neodymium
• LF Driver: 1 x 10″
• Horizontal Directivity: Dependent on Focus Preset
• Vertical Directivity: Dependent on Focus Preset

Amplifier:

• Amplifier: 400 W RMS Class D Digipro® G3
• Cooling: Convection

Power Supply:

• Power Supply: Auto-range SMPS

Processor:

• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 kHz
• Limiter: Peak, RMS, Thermal
• Processing (Filters): Linear Phase FIR Filters

Input/Output:

• Signal Input: 1 x XLR female, 1 x RJ45 Link (RDNet), 1 x USB (Data Service)
• Signal Output: 1 x XLR male, 1 x RJ45 Link (RDNet)
• Power Socket: 1 x PowerCON TRUE1 In, 1 x PowerCON TRUE1 Out

Controls:

• Controls: 1 x Rotary Encoder (8 presets), 1 x Input Sensitivity Encoder, 1 x Mic/Line Switch, 1 x On LED, 1 x Status LED, 1 x Signal LED, 1 x Limiter LED

Mechanics:

• Housing: Wooden cabinet, Polyurea painting
• Handles: 1 on left side
• Width: 450 mm (17.71 in)
• Height: 165 mm (6.49 in)
• Depth: 480 mm (18.89 in)
• Weight: 13.7 kg
