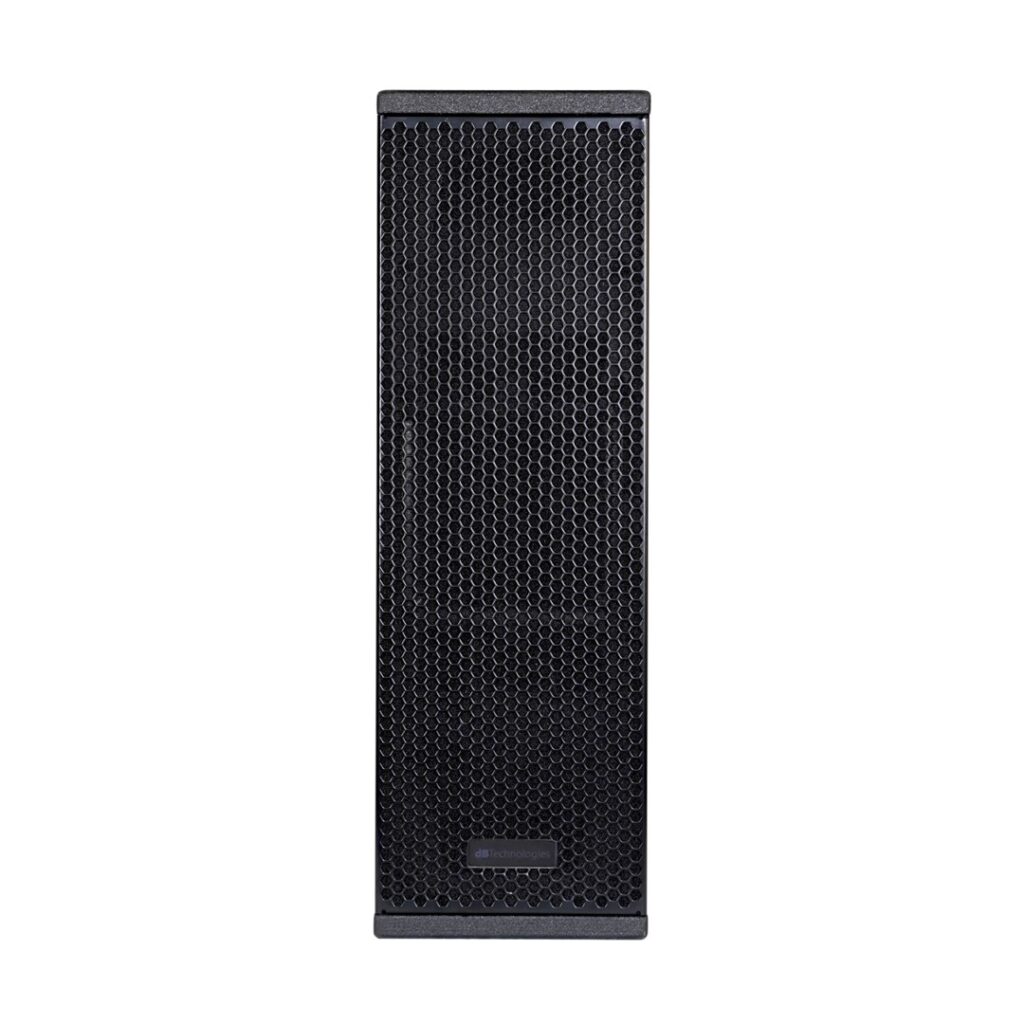

dB Technologies VIO X206 Line Array Rotatable Horn

The dB Technologies VIO X206 Line Array Rotatable Horn is an ultra-compact active speaker designed for exceptional sound delivery. It features dual coverage options: a standard 90x60° for versatile applications and a 100x15° dispersion pattern that transforms the speaker into a line array module. With advanced DSP and robust design, the VIO X206 excels in various environments, from live events to corporate settings.

Specifications:

Technical Data:

• Speaker Type: 2-Way Active Loudspeaker

Acoustical Data:

• Usable Bandwidth [-10 dB]:
  • 66 – 19,500 Hz
  • 66 – 18,000 Hz (VIO X206-100)
• Frequency Response [-6 dB]:
  • 70 – 18,000 Hz
  • 70 – 17,500 Hz (VIO X206-100)
• Max SPL: 131 dB
• HF Driver: 1 x 1”, 1.75″ voice coil
• LF Drivers: 2 x 6.5”, 1.75″ voice coil
• Directivity:
  • 60° x 90° (rotatable)
  • 100° x 15° (H x V) for VIO X206-100

Amplifier:

• Amplifier Power: 900 W RMS Class-D Digipro® G3
• Cooling: Convection
• Power Supply: Auto-range SMPS

Processor:

• Controller: DSP 32 bit
• AD/DA Converter: 24 bit/96 kHz
• Limiter: Peak, RMS, Thermal
• Processing: FIR Linear Phase Filters

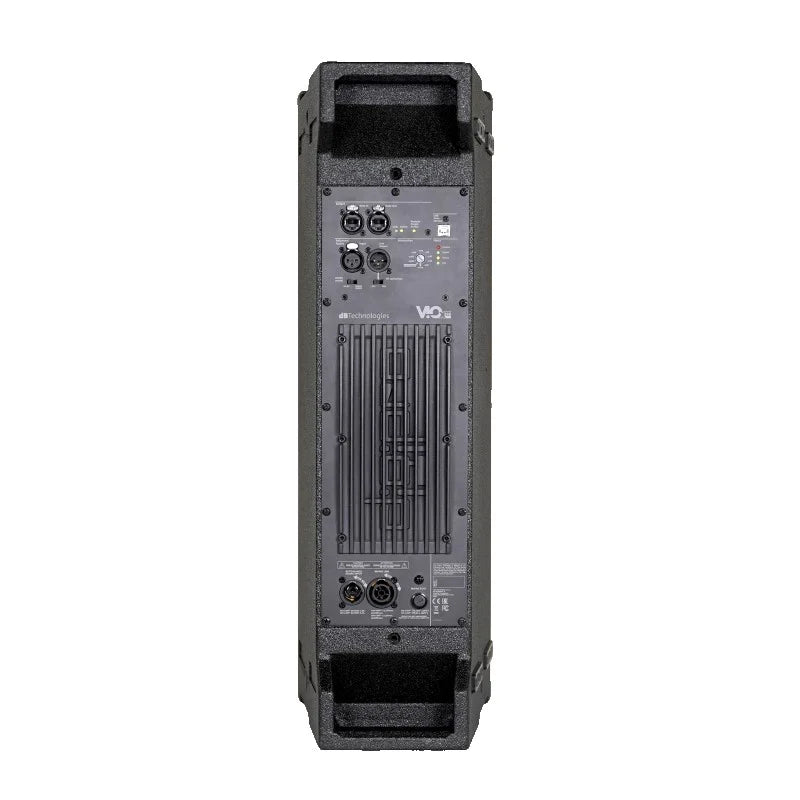

Input/Output:

• Signal Input:
  • 1 x XLR balanced
  • 1 x RJ45 Link (RDNet)
  • 1 x USB (Data Service)
• Signal Output:
  • 1 x XLR balanced
  • 1 x RJ45 Link (RDNet)
• Power Socket:
  • 1 x PowerCON TRUE1 In
  • 1 x PowerCON TRUE1 Out

Controls:

• Controls:
  • 1 x Input Sensitivity Rotary Encoder (10 presets)
  • 1 x Horn Model Selection Switch
  • 1 x On LED
  • 1 x Status LED
  • 1 x Signal LED
  • 1 x Limiter LED
  • 3 x RDNet Status LED

Mechanics:

• Housing: Wooden Cabinet, Polyurea painting
• Handles: 2 Integrated
• Rigging Points: 2 x M10 Threaded Nuts (top and bottom)

Dimensions:

• Width: 210 mm (8.3 in)
• Height: 650 mm (25.6 in)
• Depth: 270 mm (10.6 in)
• Weight: 17.3 kg
