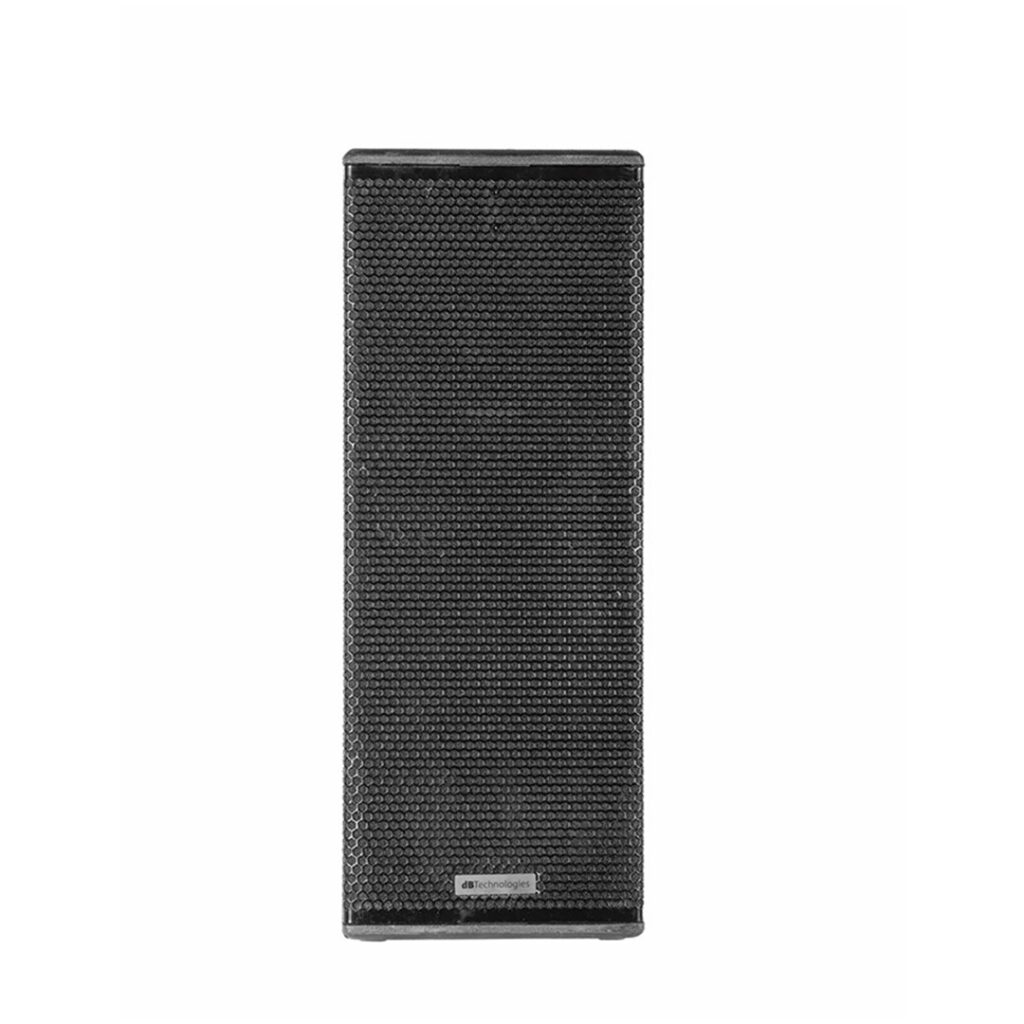

dB Technologies VIO X310 Dual 10″ Tour Grade Speaker

The dB Technologies VIO X310 is a tour-grade, 3-way, self-powered speaker designed for large venues. With dual 10" woofers and a tri-amped design, it achieves exceptional sound quality and pressure levels. Ideal for diverse applications, it adapts seamlessly to any environment.

Specifications:

• Speaker Type: 3 Way Active Loudspeaker
• Usable Bandwidth [-10dB]: 53 – 19,800 Hz
• Frequency Response [-6dB]: 57 – 19,200 Hz
• Max SPL: 138 dB
• HF/MF Driver: 1x 1.4”, 4″-2.5″ voice coil Coaxial Neodymium
• LF Drivers: 2x 10”, 2.5″ voice coil Neodymium
• Directivity: 90° x 40° (H x V)

Amplifier:

• Amplifier Power: 1400 W RMS Class-D Digipro® G4
• Cooling: Convection
• Power Supply: Full range SMPS with Power Factor Correction (PFC)

Processor:

• Controller: DSP 32 bit
• AD/DA Converter: 24 bit/96 kHz
• Limiter: Peak, RMS, Thermal
• Processing: FIR Linear Phase Filters

Input/Output:

• Signal Input:
  • 1 x XLR balanced
  • 1 x RJ45 Link (RDNet)
  • 1 x USB (Data Service)
• Signal Output:
  • 1 x XLR balanced
  • 1 x RJ45 Link (RDNet)
• Power Socket:
  • 1 x PowerCON TRUE1 In
  • 1 x PowerCON TRUE1 Out

Controls:

• Controls:
  • 1 x input Rotary Encoder (8 presets)
  • 1 x Ready LED
  • 1 x Mute/Prot LED
  • 1 x Signal LED
  • 1 x Limiter LED
  • 1 x Frontal LED
  • 1 x Button and 1 x LED System Test

Mechanics:

• Housing: Wooden Cabinet
• Handles: 1 on top / 1 on bottom
• Rigging Points: Flyable with bracket
• Width: 300 mm (11.8 in)
• Height: 780 mm (30.7 in)
• Depth: 430 mm (16.9 in)
• Weight: 28 kg
