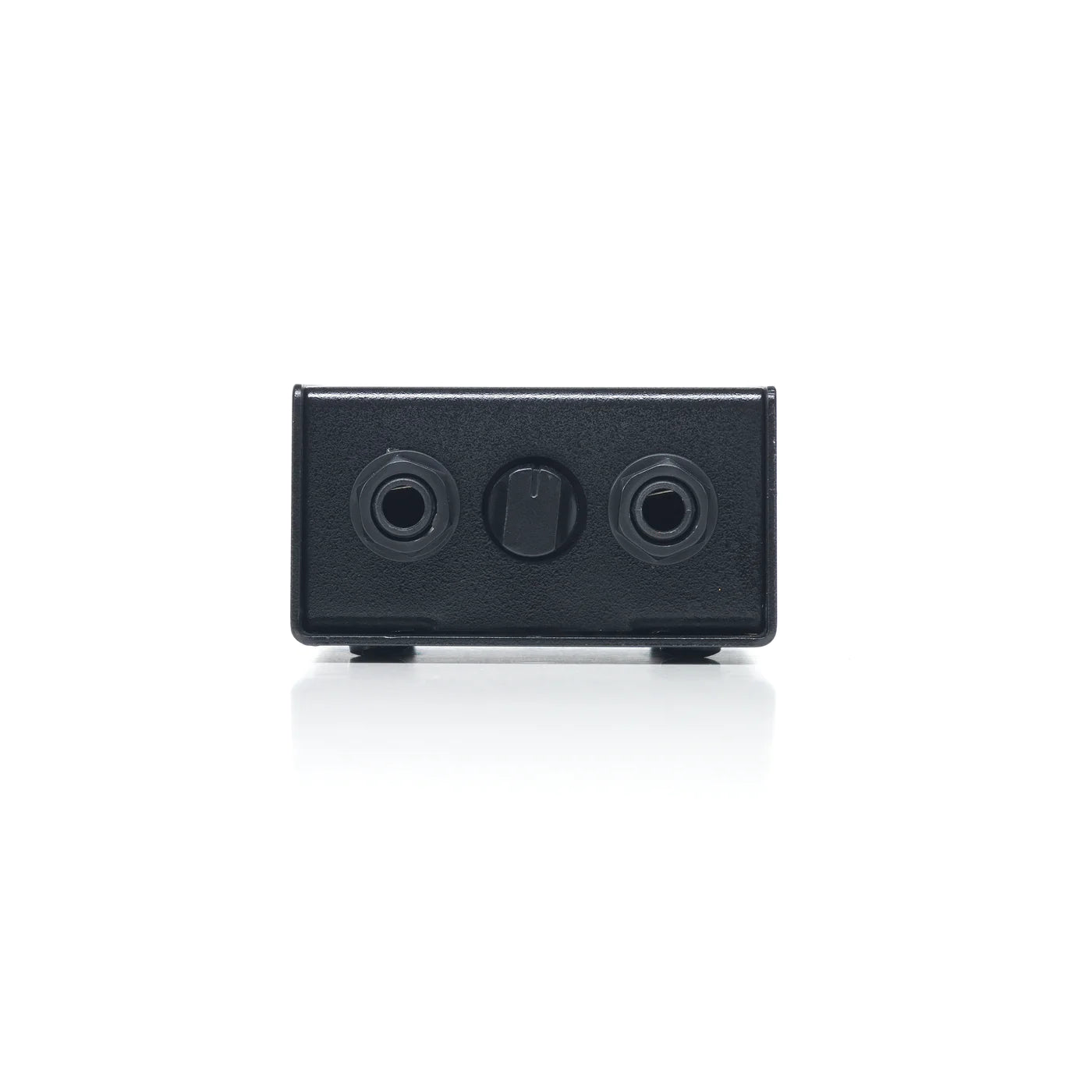

DBX DJDI 2CH PASSIVE DIRECT BOX

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

FEATURES

  • Dual Channel
  • (2) 1/4” 50k Ohm TS Inputs
  • (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
  • Passive Circuit Design
  • Continuously Variable Input Attenuator
  • Ground Lift Switch

SPECIFICATIONS

Circuit Passive
Inputs 2
Input Connectors 1/4” TS (Tip Hot, Sleeve Ground)
Input Type Unbalanced, RF Filtered
Input Impedance 50 kOhm
Outputs 2
Output Connectors Male XLR, Balanced, Pin 2 hot
Output Impedance 600 Ohms
Noise Level -104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
Insertion Loss 21dB typical

DBX DJDI 2CH PASSIVE DIRECT BOX

Regular price R 1,199.00
Unit price
per
Free Shipping
Secure Checkout
24/7 Support
Loved By Many
Availability

Shipping calculated at checkout.

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

FEATURES

  • Dual Channel
  • (2) 1/4” 50k Ohm TS Inputs
  • (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
  • Passive Circuit Design
  • Continuously Variable Input Attenuator
  • Ground Lift Switch

SPECIFICATIONS

Circuit Passive
Inputs 2
Input Connectors 1/4” TS (Tip Hot, Sleeve Ground)
Input Type Unbalanced, RF Filtered
Input Impedance 50 kOhm
Outputs 2
Output Connectors Male XLR, Balanced, Pin 2 hot
Output Impedance 600 Ohms
Noise Level -104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
Insertion Loss 21dB typical
