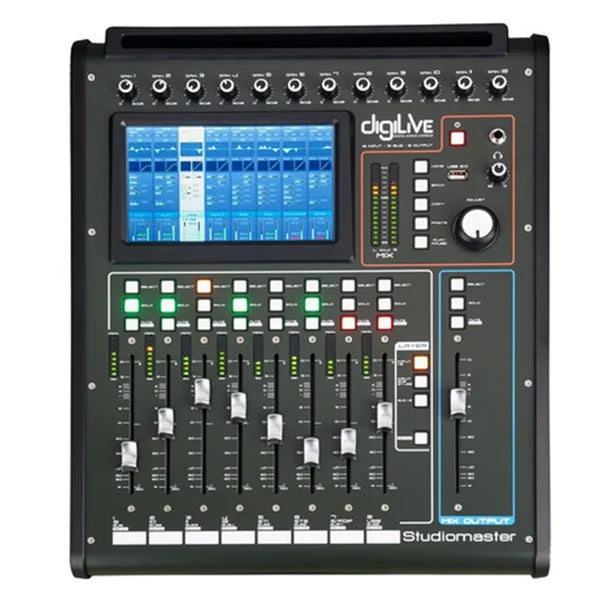

StudioMaster DIGILIVE16 16 CH DIGITAL CONSOLE

• 16 input with 16 internal busses
• 12 professional mic input channels
• 2 stereo inputs
• 8 configurable smart outputs
• 7″ high resolution touch screen
• 9 motorised 100mm faders
• Advanced hybrid user interface

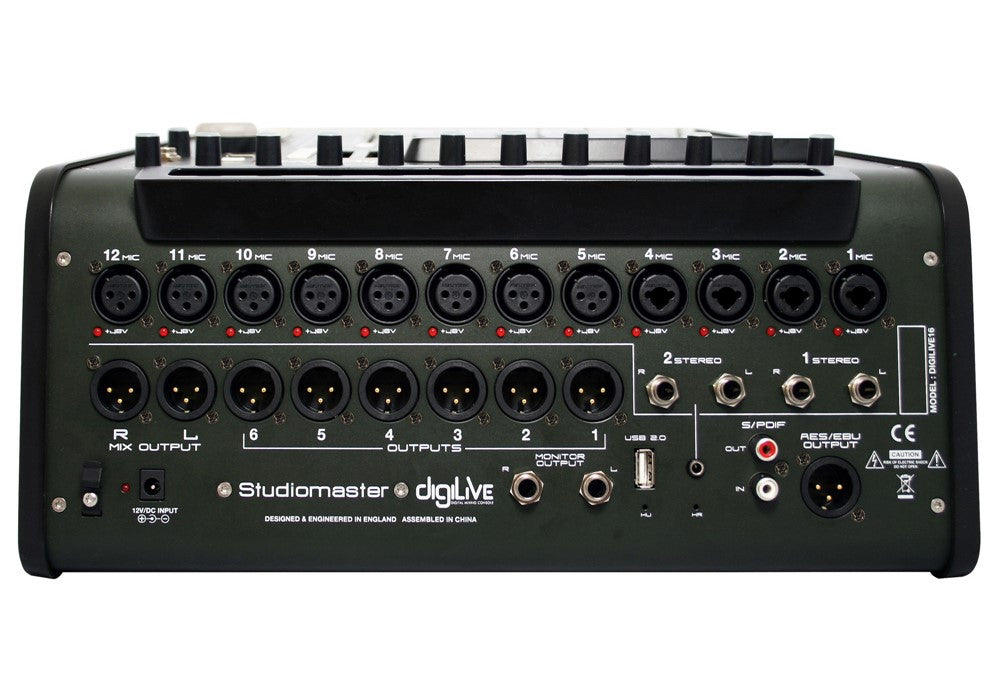

Specifications

Mic Inputs: 12 (8x XLR / 4x Combo XLR)

Stereo Inputs: 2

Master Output: 2 (Left/Right balanced XLR)

Smart Outputs: 6 (assignable balanced XLR)

Internal busses: 16

Stage monitor: 1 TRS Jack output

Headphone: 1 TRS Jack output

Screen: 7″ high definition touch screen

Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix

Operation system: Android system

Network: Yes, via included WiFi module

Remote control: iPad iOS via ‘Digilive Blackbox’ app

Sample Frequency: 48 KHz

AD/DA: 192 KHz, 24-bit

DSP: 40 bit float point, SHARC processor

Effects: up to 8 assignable effect modules

AES/EBU: Output XLR

S/PDIF: Input / Output (RCA Phono)

USB Interface: 2 for playback/recording, scene/setting storage and system updates

Power Supply: 90-240V ~ 50/60Hz power supply 12VDC

Dimension W*H*D: 357 x 480 x 145 (mm)
