FBT VERTUS CS 1000 Compact Line Array Integrated System
FBT VERTUS CS 1000 Compact Line Array Integrated System
Secure Delivery In All Orders
Secure Checkout & Payments
Couldn't load pickup availability

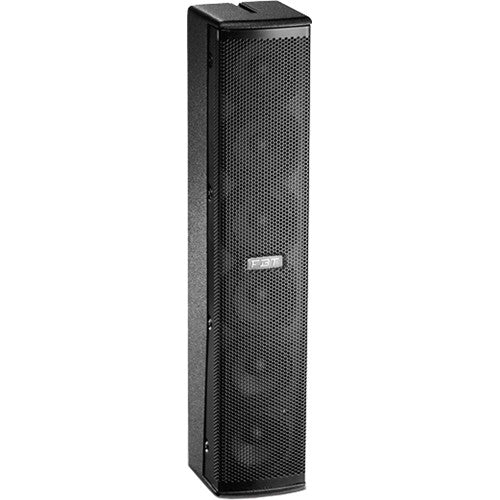

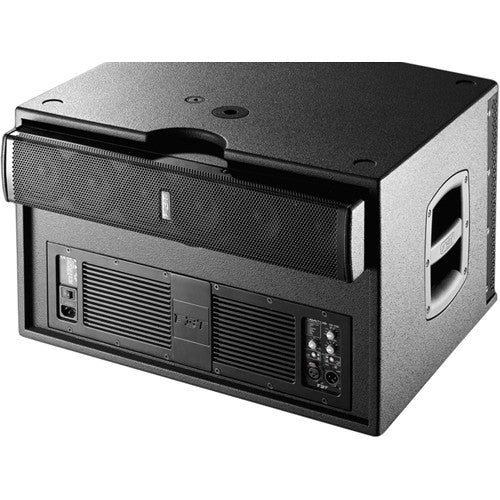

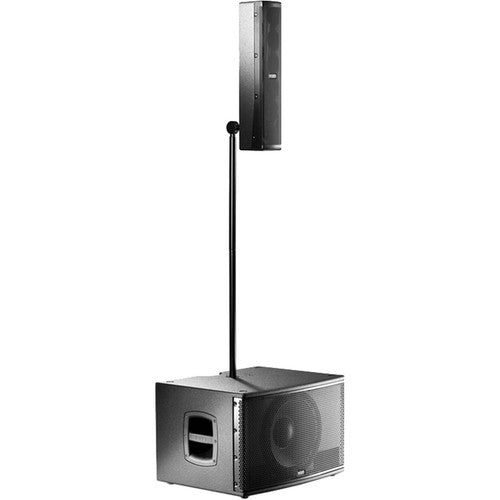

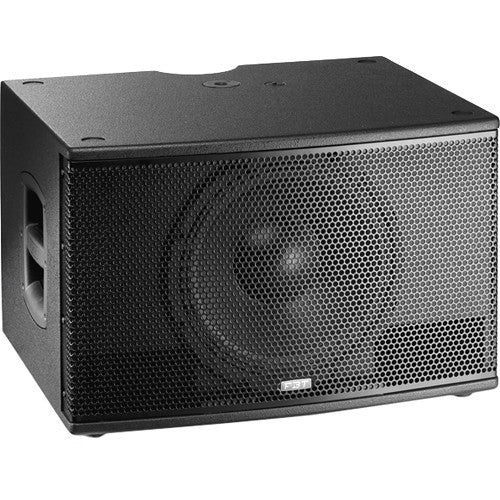

The VERTUS CS 1000 Compact Line Array Integrated System from FBT features a lightweight yet sturdy construction. It can be deployed on stage or discreetly integrated into the most delicate of decors to provide high-quality sound and controlled directivity. The bi-amplified design comprises of a long excursion 12" bass reflex subwoofer and a passive mounted satellite, linked via a Neutrik SPEAKON connector and equipped with six full-range neodymium 3" drivers. There is a Class D, 2-channel amplifier on-board the subwoofer, complete with switch-mode power supply, delivering 600W RMS to the subwoofer and 400W RMS to the satellite, both of which are housed in birch plywood enclosures. A storage compartment is provided within the subwoofer enclosure to securely house both the satellite speaker and its supplied mounting pole for storage and transport.
| System Type | 2-Way |
| Built-in Amplifier | Continuous: 600 / 400 W RMS Peak: 1200 / 800 W |
| Frequency Response | @ -6 dB: 40 Hz to 20 kHz |
| Input Impedance | 22 kOhms |
| Maximum SPL | 125 dB / 129 dB |
| Dispersion | 110° x 30° |
| Crossover Frequency | 180 Hz |
| AC Power Requirements | 640 VA |
| Woofer | 1 x 12" (30.5 cm) driver with 2.5" (6.35 cm) coil |
| High Frequency Driver | 6 x 3" (7.6 cm) Driver with 0.8" (2.0 cm) coil |
| Input Connectors | XLR with loop |
| Enclosure Material | Birch plywood |
| Dimensions | Satellite: 4.09 x 20.86 x 4.56" (104 x 530 x 116 mm) Subwoofer: 22.24 x 15.27 x 17.71" (565 x 388 x 450 mm) |
