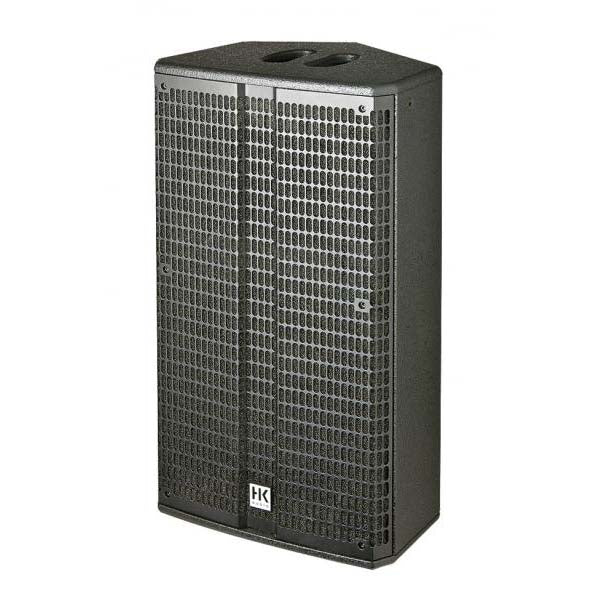

HK Audio LINEAR 5 112XA

The 12’/1′ model is housed in a multifunctional enclosure that delivers highest sound pressure levels (135 dB MAX SPL peak). A switchable filter configures it for use as a top unit (adding long-range capability) in systems with the Linear Sub 2000/ 2000 A. The L5 112 XA also serves as an excellent monitor with a plenty of gain before feedback, whereby the rotatable 60° x 40° CD horn provides an exemplary coverage pattern.

• Application: Mid/High Unit, Monitor
• 1000 Watt Class-D (650 W 350 W, biamped)
• 12′ Speaker with 2,5′ voice coil
• 1′ Driver with 1,75′ voice coil
• 135 dB Max SPL Peak @ 10% THD (halfspace)
• CD Horn (60? x 40?) , rotatable
• Rugged hybrid (birch multiplex /MDF) housing
• 2 separate Inputs
• EQ switch (Top / Monitor)
