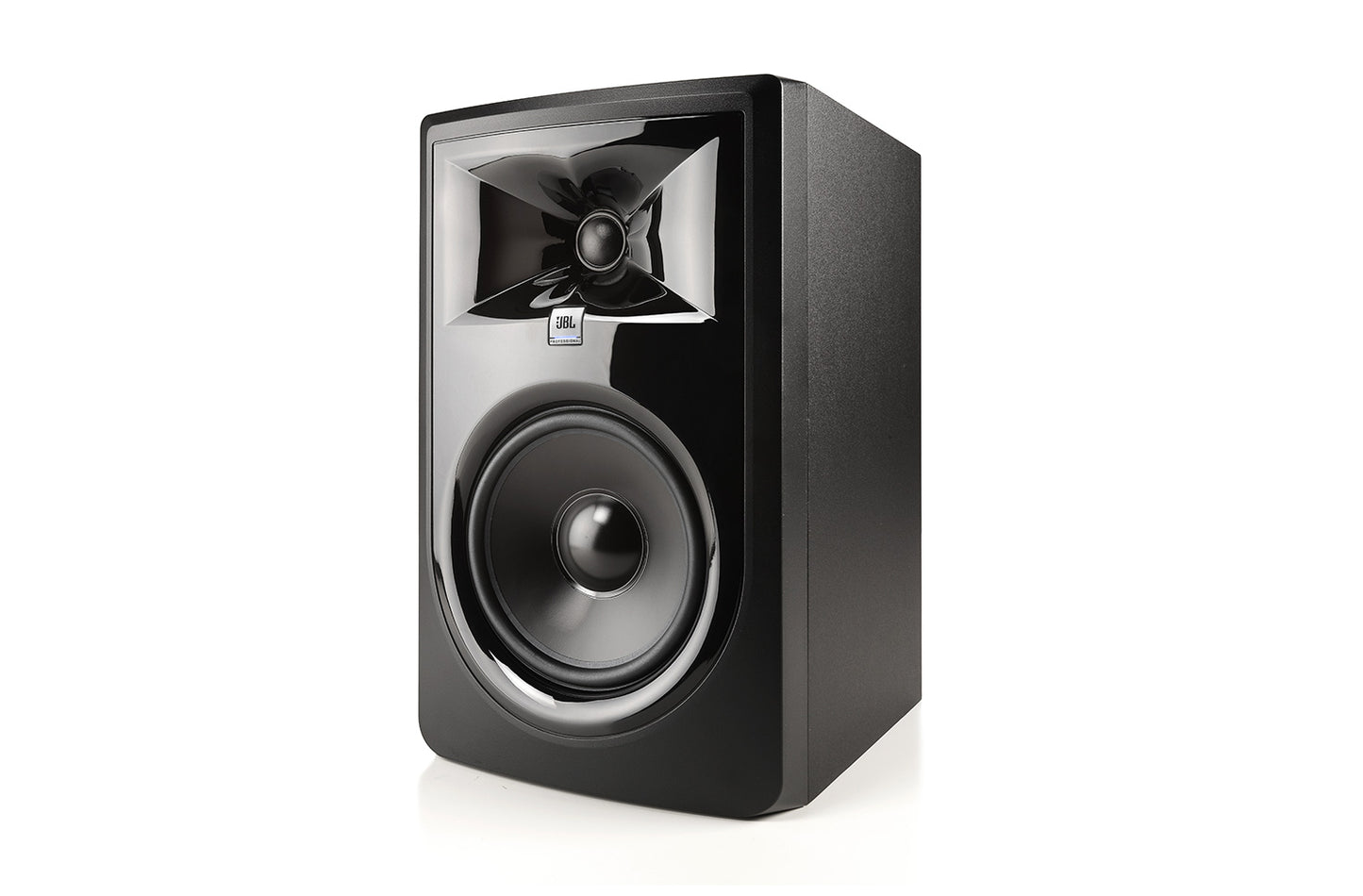

The next-generation JBL 306P MkII compact powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors, and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Key Features
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
Specifications
LF Driver : 165mm (6.5″)
HF Driver Size : 25mm (1″)
HF Driver Type : Soft dome
Crossover : 1425Hz 4th order acoustic Linkwitz-Riley
Ok For Use Near Magnetically Sensitive Equipment : Yes
Input Sensitivity (-10dBV INPUT) : 92dB / 1m
Power Configuration : Bi-amplified
HF Driver Power Amp : 56W, Class-D
LF Driver Power Handling : 56W, Class-D
Frequency Response (±3 dB) : 47Hz – 20kHz
Frequency Range (-10dB) : 39Hz – 24kHz
Low Frequency Extension(-10dB) : 39Hz
Maximum Continuous SPL : 92dB
Maximum Peak SPL : 110dB
Maximum Peak Input Level (-10dBV / +4dBu) : +6dBV / +20.3dBu
System Distortion Criteria : <10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria : 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio : 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Angle : 120° x 90°
Input Connectors : 1 x XLR female, 1 x TRS female, balanced
HF Trim Control : -2dB, 0dB, +2dB
Boundary EQ : LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC Input Voltage : 100 – 240VAC (±10%), 50 / 60Hz
Enclosure Type : Ported
Enclosure : 15mm MDF
Enclosure Finish : Matte black PVC
Baffle Construction : Injection-molded structural ABS
Cabinet Dimensions (H x W x D) : 361 x 224 x 282mm (14.2″ x 8.8″ x 11.1″)
Display Carton (H x W x D) : 408 x 285 x 328mm (16.1″ x 11.2″ x 12.9″)
Shipping Carton (H x W x D) : 418 x 292 x 338mm (16.5″ x 11.5″ x 13.3″)
Net Weight (each) : 6.1 kg (13.42 lbs)
Shipping Gross Weight : 7.25 kg (15.95 lbs)
