- Transducer:
- 918SG 18” ferrite magnet woofer
- FEA flared port design reduces air noise and distortion
- Lightweight, efficient Class D amplification
- Power: 2,000 watts peak/1,000 watts RMS
- 18mm birch cabinet features optimized bracing for smooth low-frequency response
- Frequency response: 30 Hz–110 Hz @2pi (-10 dB); 35 Hz–92 kHz @2pi (-3 dB)
- Max SPL: 134 dB
- Color LCD screen provides access to comprehensive DSP suite
- DriveRack Technology includes 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
- JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
- Optimized presets for pairing with full-range speakers

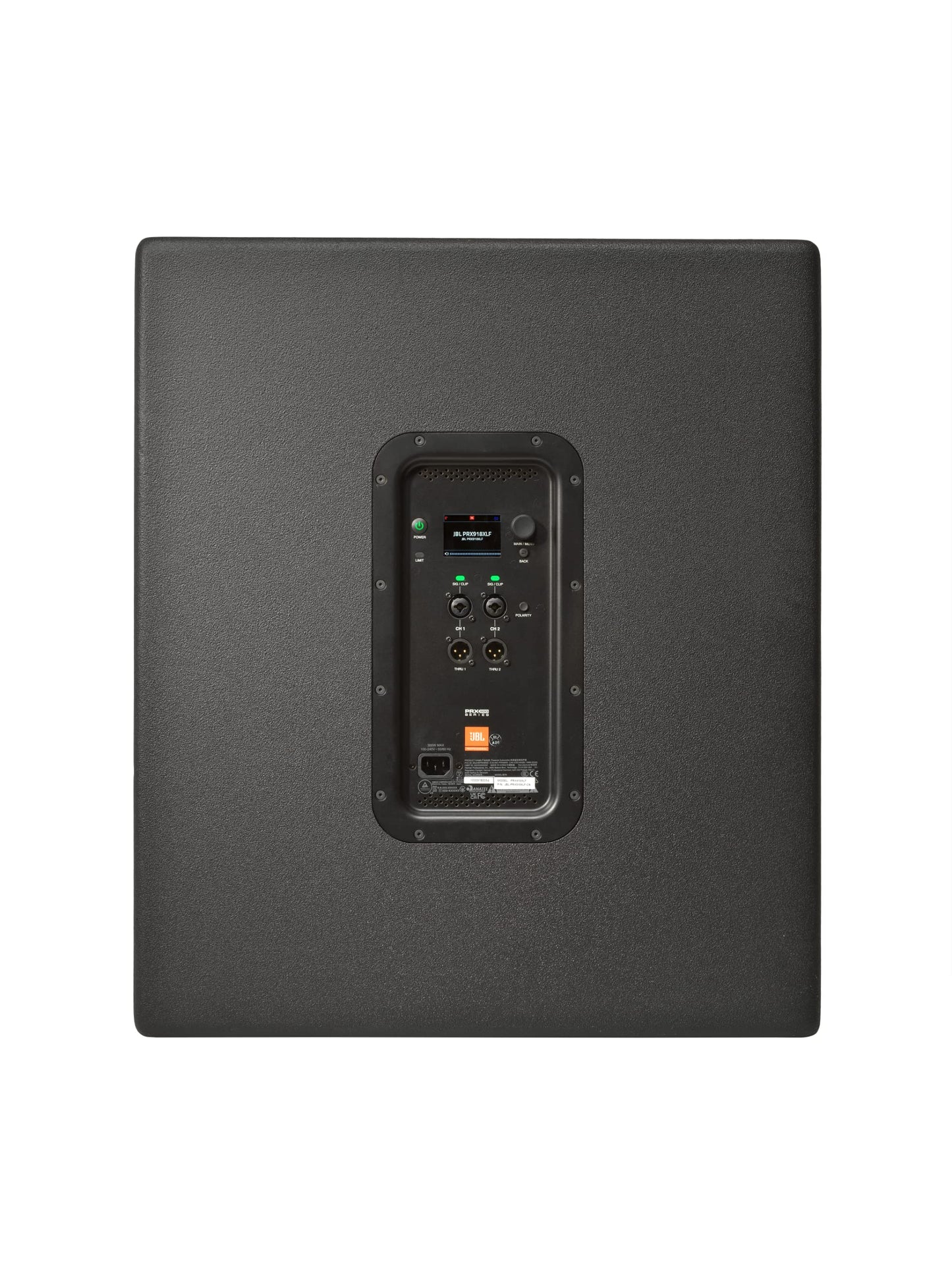

- I/Os:
- 2 XLR balanced Combo jacks
- 2 XLR pass-through outs
- Two side handles
- Mount: M20 pole cup
- Cabinet features optimized bracing for smooth low-frequency response
- Quiet fanless operation
- Ultra-low system latency: <1ms
- Net weight: 40.7 kg (89.7 lbs); gross weight: 47.5 kg (104.7 kg)
- Dimensions: 693 mm x 591 mm x 654 mm (27.3 in x 23.3 in x 25.7 in) (H x W x D)
- Shipping dimensions: 732 mm x 703 mm x 766 mm (28.8 in x 27.7 in x 30.2 in) (H x W x D)
