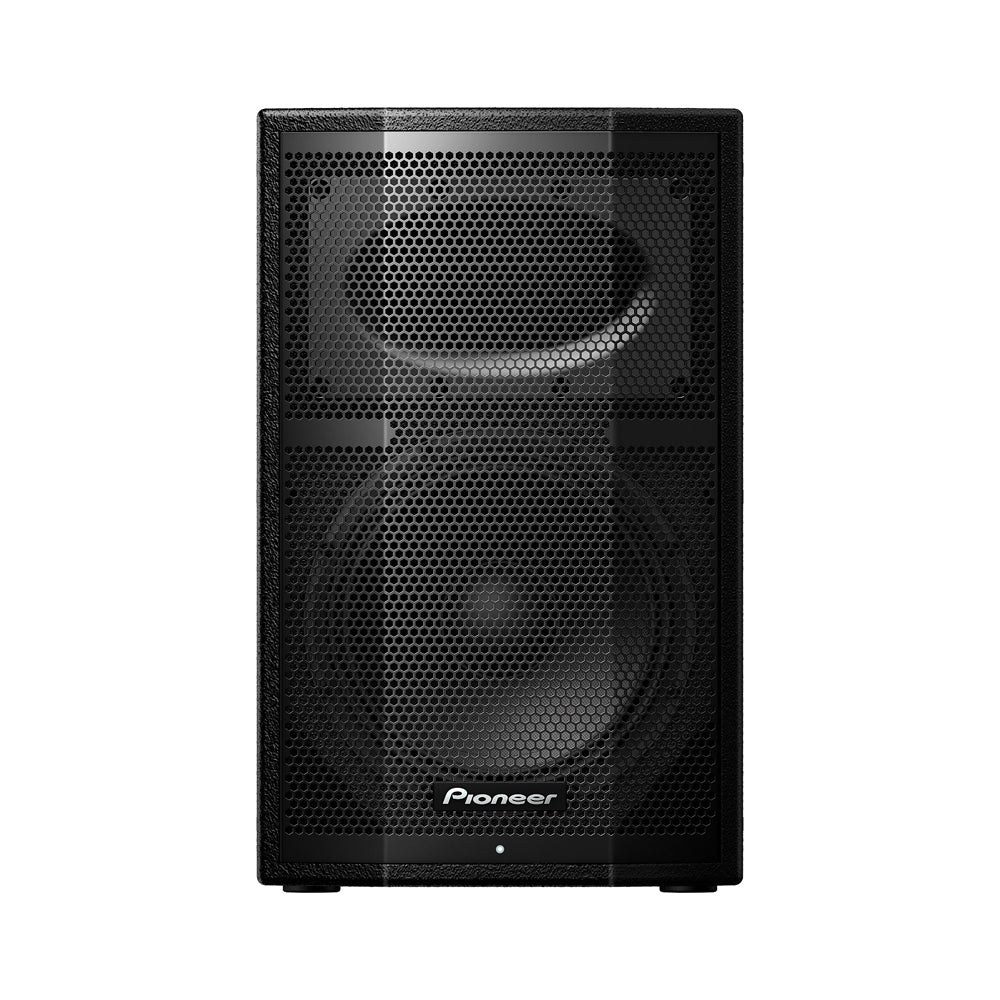

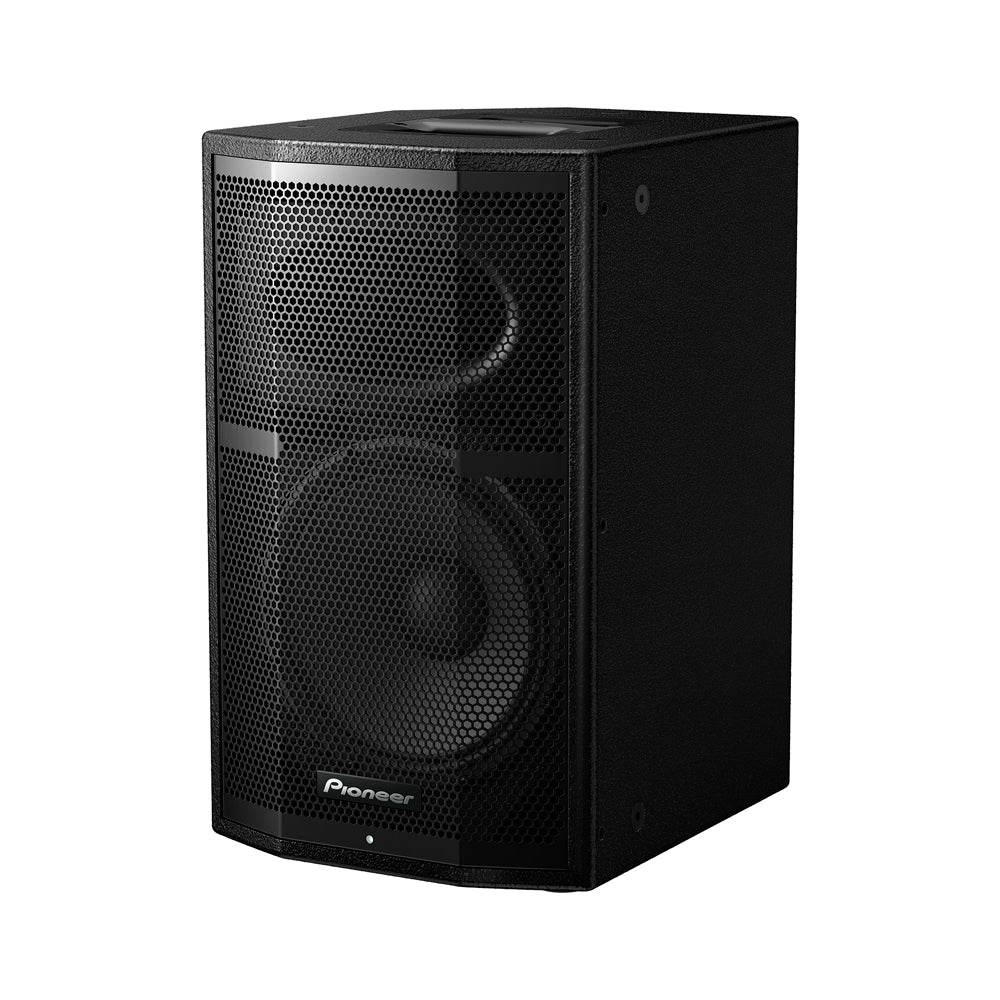

Meet the compact, versatile XPRS 12
A full range speaker, featuring birch plywood enclosures for a sound that works across all musical genres.
| Speaker Type | 12″ 2-way full range, bass reflex, bi-amp, active speaker | |
|---|---|---|
| System characteristic | Frequency Response(–10 dB) | 50 Hz to 20 kHz |
| Dispersion (H x V) | 90° x 60° (rotatable) | |
| Maximum SPL (peak@1m/1w) | 135 dB | |
| Crossover Frequency | 2.0 kHz | |
| Amplifier | Amplifier type | Class D |
| Power Rating | 2400 W peak / 1200 W cont. (LF800 W/HF400 W) | |
| Input connectors | 2x XLR/TRS Combo (balanced), 2x RCA (unbalanced) | |
| Impedance | 10 kΩ | |
| Output connectors | 2x Through output XLR (balanced) 1x Mixed output XLR (balanced) |
|
| Speaker | LF driver | 12-inch ferrite LF cone driver |
| HF driver | 1.75-inch titanium diaphragm neodymium compression driver | |
| Enclosure | 15 mm birch plywood, bass reflex type | |
| Finish | Impact-resistant, black semi-matt textured | |
| Handle | 2 (on both sides) | |

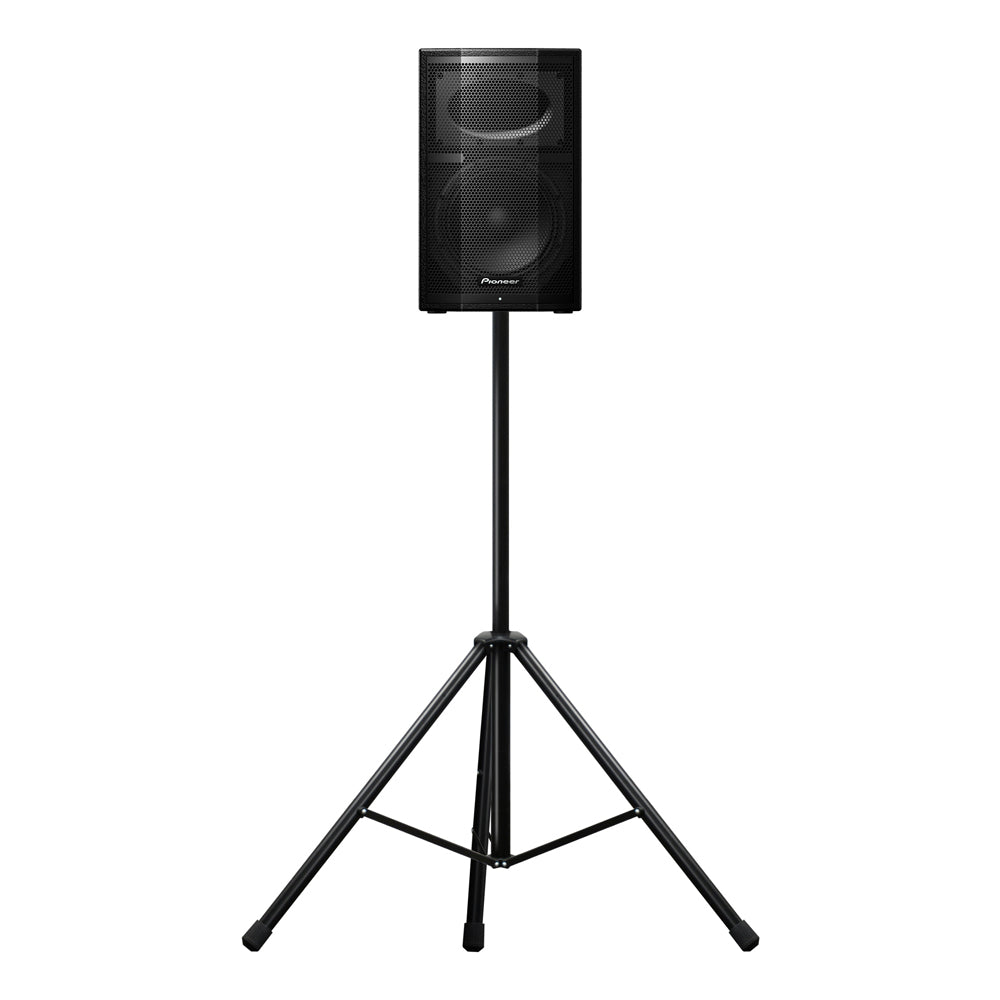

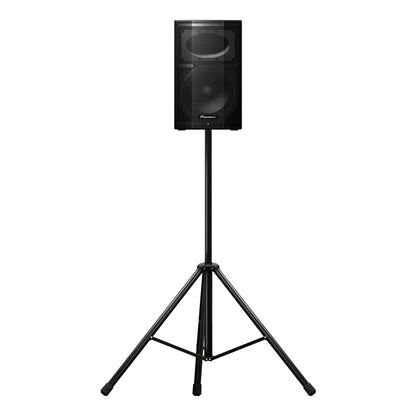

| Pole socket | 35 mm socket (0°/7° multi-angle) | |
| Rigging point | 12x M10 | |
| Protection | Amplifier Protection | Thermal limiting, over-temperature muting, output overcurrent |
| Driver Protection | DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS) | |
| Power unit Protection | Primary AC mains overvoltage protection, Primary AC mains overcurrent protection | |
| Power unit/other | Supported voltages | 100 V (50 Hz/60 Hz) / 110 V to 240 V (50 Hz/60 Hz) |
| Power consumption | 167 W | |
| Dimensions (W x H x D) | 380 x 647 x 398 mm (15 x 25.5 x 15.7 inch) |
|
