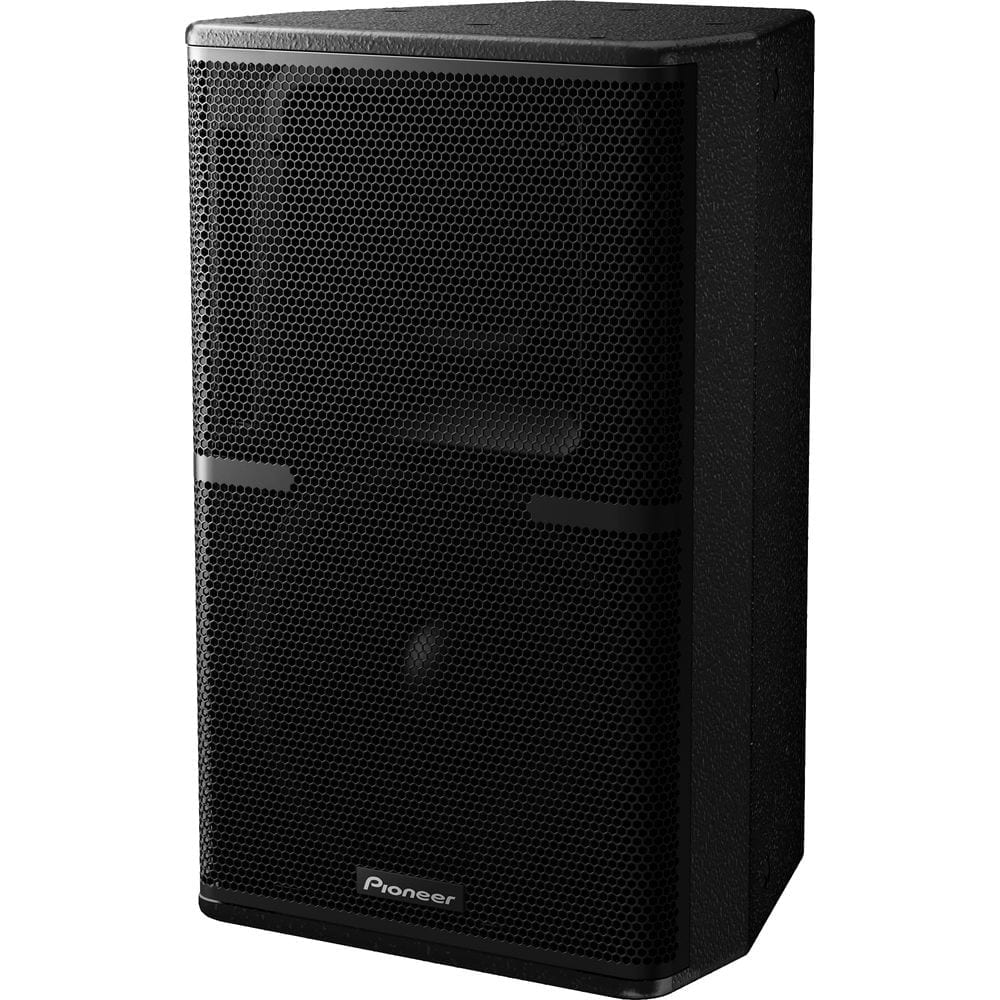

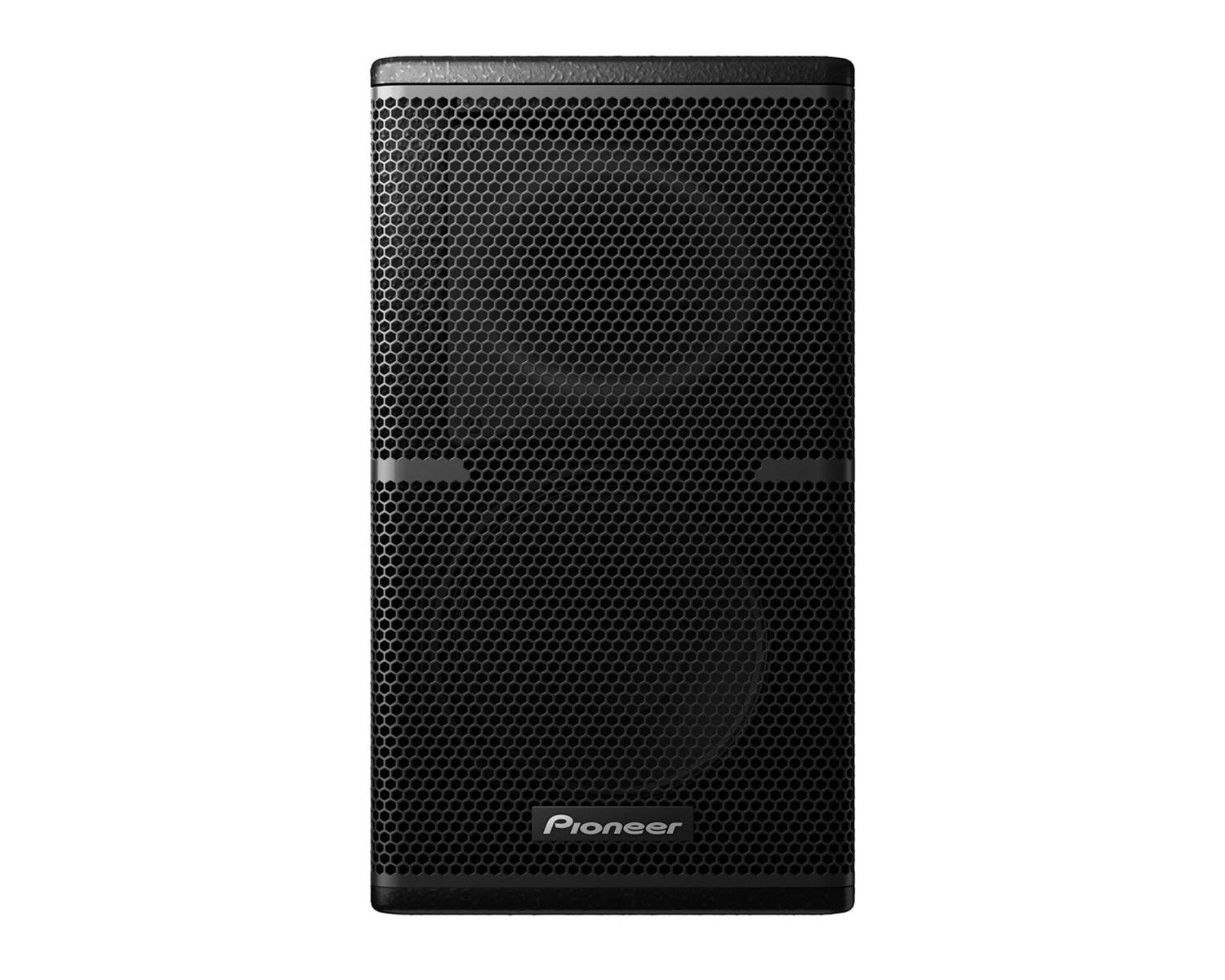

- Two-way full range speaker with 12-inch LF driver and a 1.4-inch compression driver.
- Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.
- Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.
- Designed for fixed and mobile applications, with a wide array of flying options.
- Features top hats for quick set-up.
- NL4 INPUT and LINK OUT connections as standard.
- Robust enclosure made from premium multi-laminate birch plywood.
- Impact resistant textured paint finish.
Specifications:
| Enclosure Type | Two-way, passive, reflex-loaded |
|---|---|
| Frequency Response | 70 Hz to 20 kHz |
| Sensitivity (1 W/1 m) | 101 dB |
| Nominal Impedance | 8 Ω |
| Power Handling | 400 W RMS, 800 W Program |
| Maximum SPL | 127 dB cont., 133 dB peak |
| Dispersion | 90 °H × 60 °V, rotatable |
| Driver Configuration | 12 inch (320 mm) neodymium LF cone driver, 1.4 inch (36 mm)exit neodymium HF compression driver |
| Crossover | Asymmetric internal passive crossover |
| Connectors | 2 × Neutrik SpeakON™ NL4 |
| Dimensions (W×H×D) | 380 × 622 × 360 mm (15 × 24.5 × 14.2-inch) |
| Weight | 23 kg (50.7 lbs) |

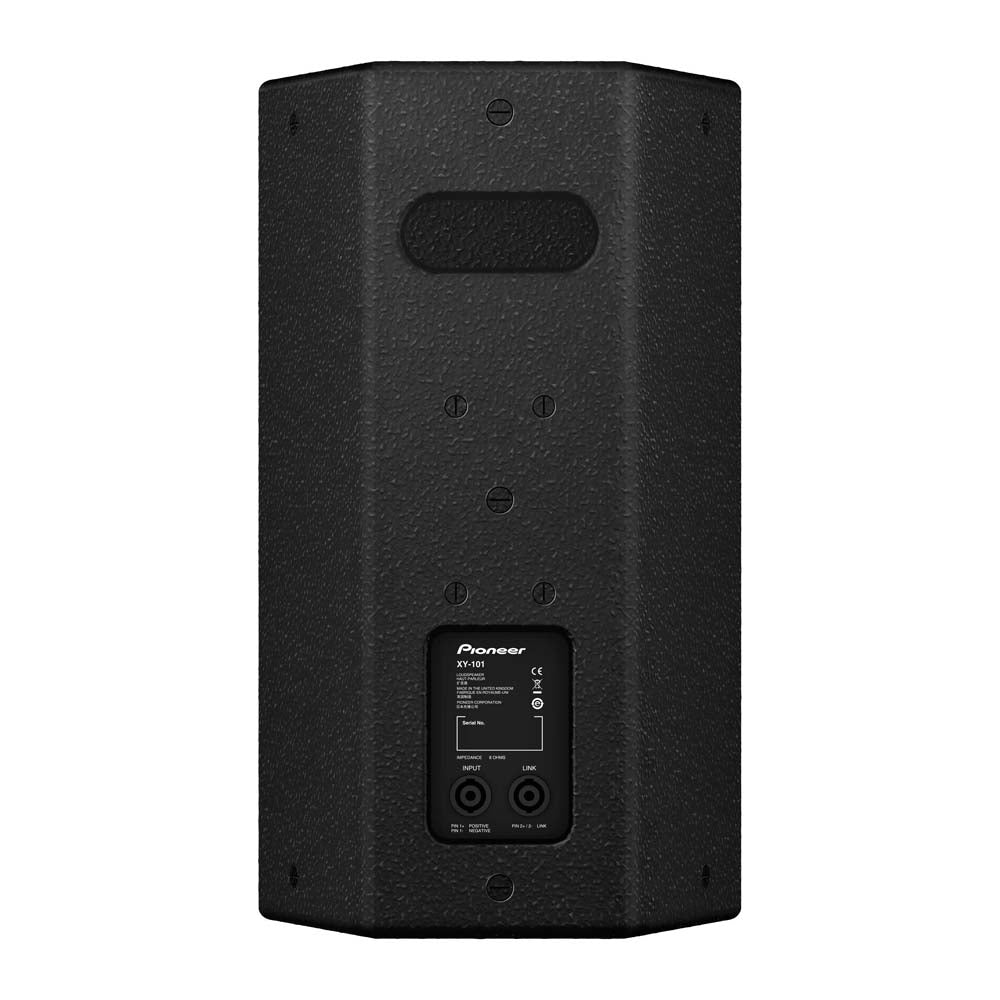

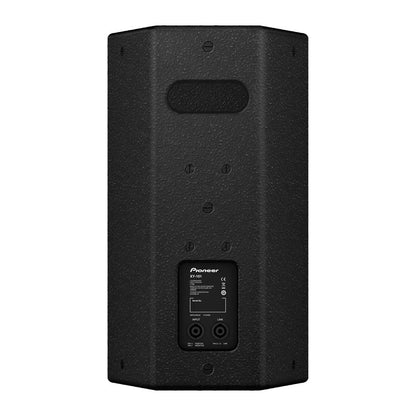

| Rigging and Hardware | 8 × M10 threaded mounting points (4 top/4 bottom), 2 × M10 threaded mounting points on rear, 4 × M10 threaded mounting points on side (2 left/2 right), 4 × M8 threaded points on rear (for wall mount bracket), 1 × flush handle on rear, 1 × 35 mm polemount socket |
| Grille | Hex punched steel |
| Enclosure | 15 mm (0.6-inch) birch plywood |
| Finish | Impact-resistant, Black semi-matt textured |
| Suggested Power Amplifier | Recommended : K3DSP Minimum : M30DHDSP |
| Accessories | polemount socket cover (-W model only) |
