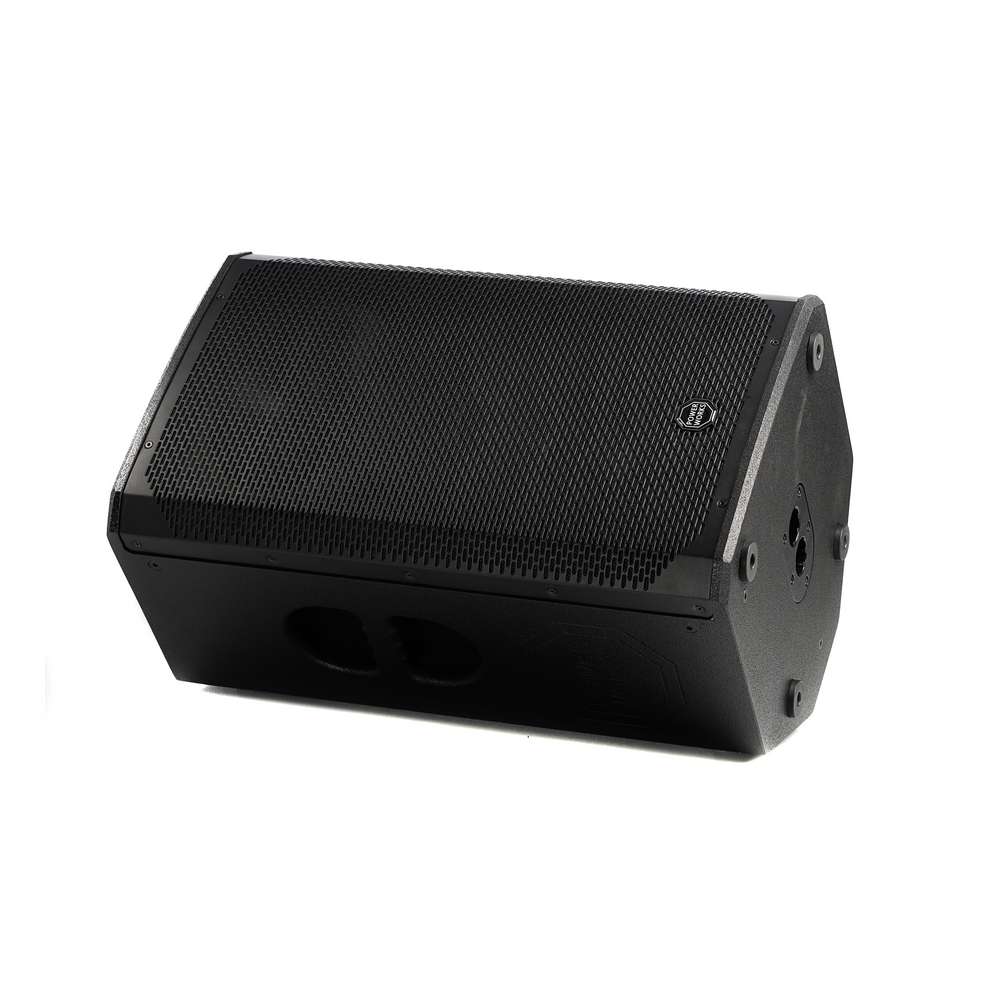

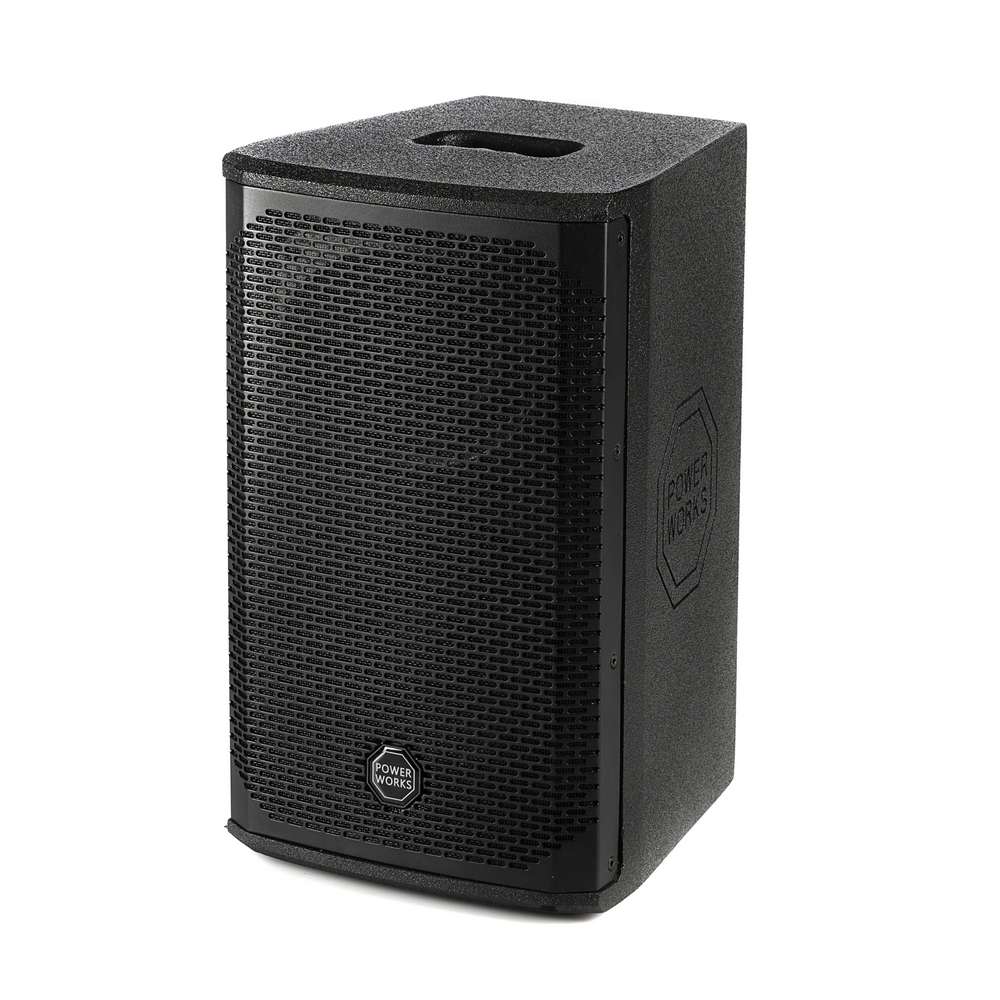

The ARTEMIS Series of Active Plywood enclosure have been designed as a high performance, light weight Audio Solution.
There are 4 models in the range 8″, 10″, 12″ and 15″. The speaker box can also be used as a stage monitor.
Equipped with High Power Woofers and compression drivers. The speakers deliver high definition audio with a wide frequency response.
| Frequency Response | 65Hz – 19kHz / -10dB |
| Max SPL | 120 dB |
| Low-freq. Transducer | 10″ Woofer 2″ Voice Coil |
| High-freq. Transducer | 1.35″ Compression Driver |
| Coverage | H90 x V60 |
| Crossover Frequency | 3,2kHz |
| Low-Frequency Amplifier | Class-D 300W RMS – 600W Peak |
| High-Frequency Amplifier | Class-AB 50W RMS – 100W Peak |
| Power Consumption | 350W |
| Fuse | T3.15A-250V |
| AC Mains | 220/240V 50/60Hz |

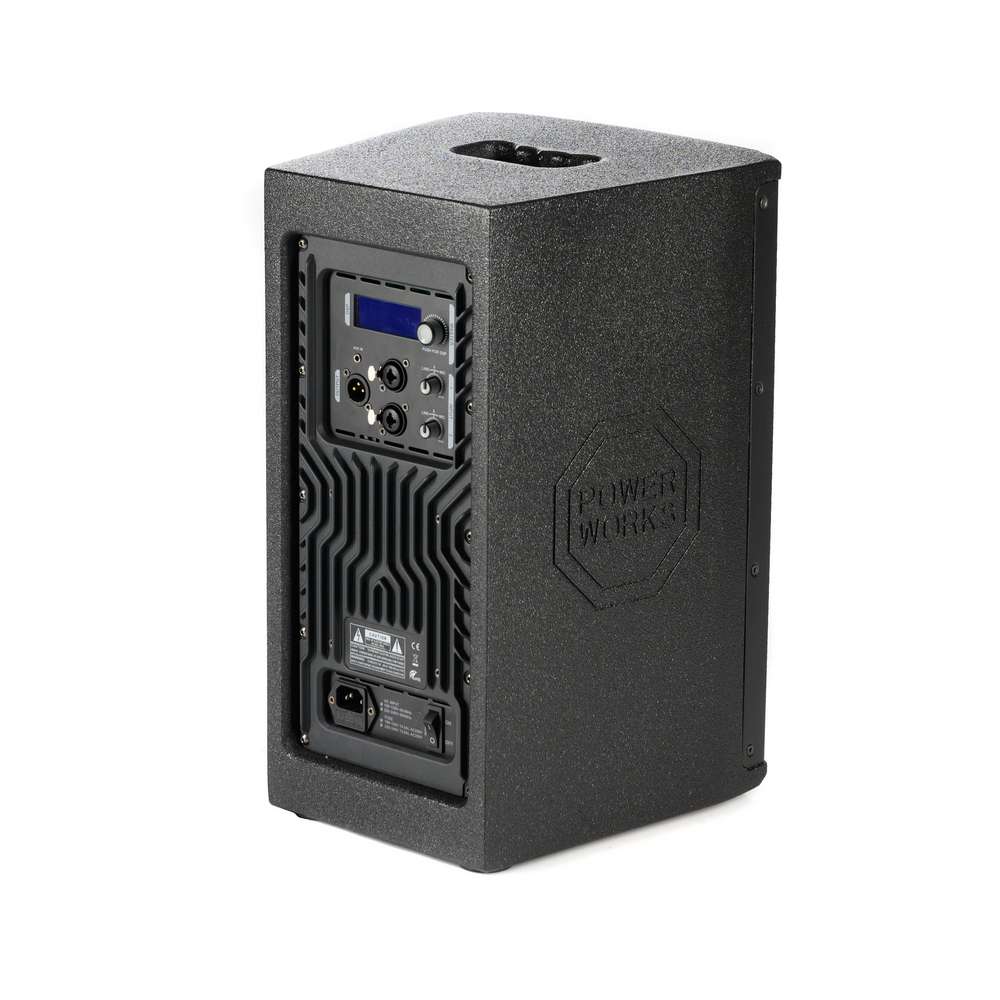

| Input Connections | 2 x COMBO (XLR + 1/4″ Jack, balanced)+3,5mm Jack |
| Output Connections | 1 x XLR (Mix output, balanced) |
| Housing material | Plywood Cabinet |
| 1.2mm Steel Grille | |
| Handles | 2 on sides |

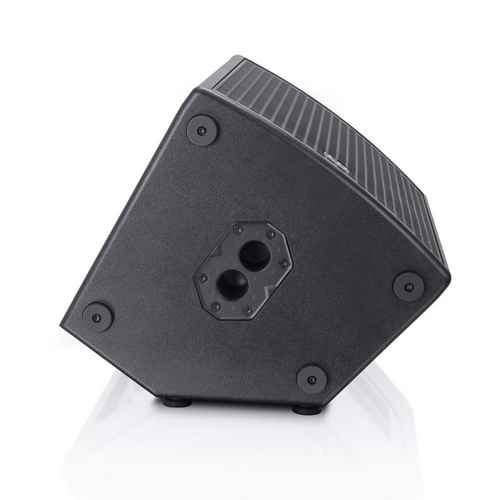

| Tripod/Pole Hole | Duo-tilt 0 and 7 |
| Stage Monitor Use Angle | 30 Degrees and 45 Degrees |
| Speaker Size (WxHxD) | 380 x 570 x 400 mm |
| Packing Size (WxHxD) | 390 x 580 x 410 mm |
| Speaker Weight | 17.4 kg |
| Carton Weight | 18.4 kg |
