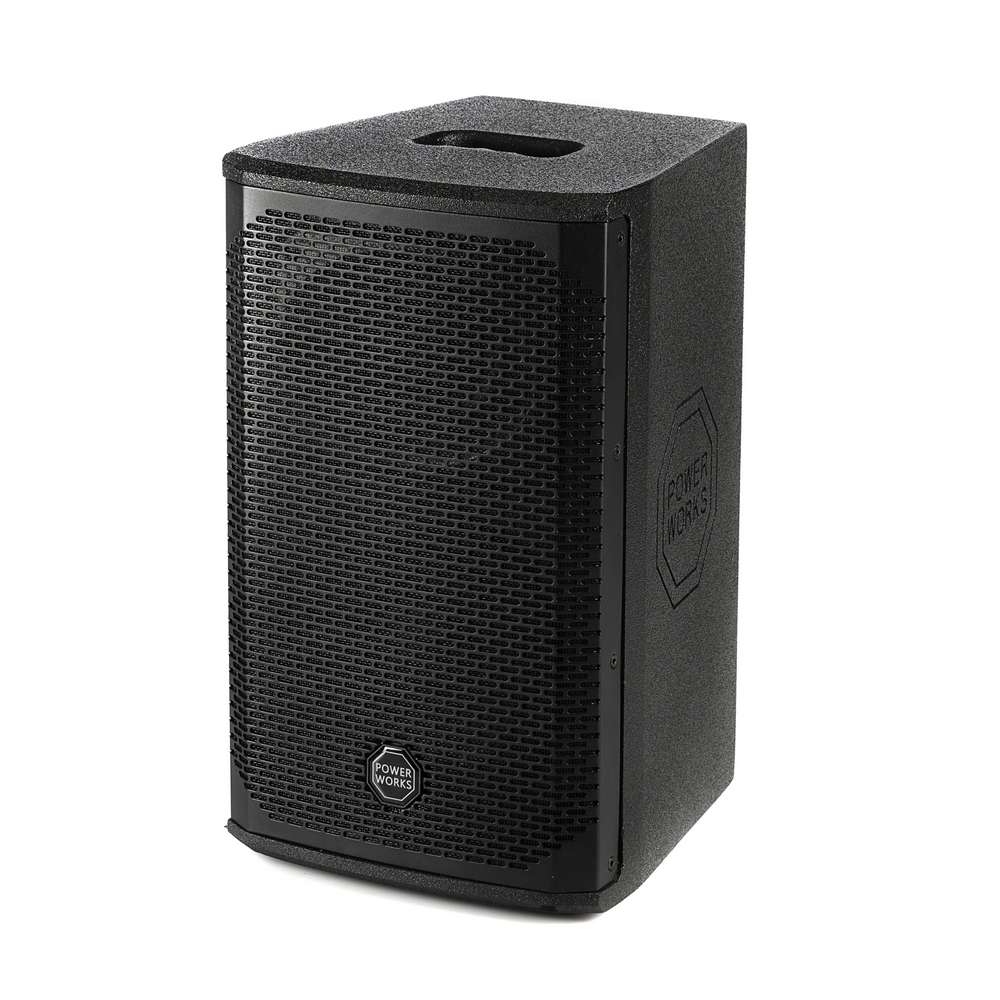

The ARTEMIS Series of Active Plywood enclosure have been designed as a high performance, light weight Audio Solution.
There are 4 models in the range 8″, 10″, 12″ and 15″. The speaker box can also be used as a stage monitor.
Equipped with High Power Woofers and compression drivers. The speakers deliver high definition audio with a wide frequency response.
| Frequency Response | 50Hz – 19kHz / -10dB |
| Max SPL | 136 dB |
| Low-freq. Transducer | 12″ Woofer 2.36″ Voice Coil |
| High-freq. Transducer | 1.35″ Compression Driver |
| Coverage | H90 x V60 |
| Crossover Frequency | 2,8kHz |
| Power Consumption | 450W |
| Fuse | T3.15A-250V |
| AC Mains | 220/240V 50/60Hz |
| Input Connections | 2 x COMBO (XLR + 1/4″ Jack, balanced)+3,5mm Jack |
| Output Connections | 1 x XLR (Mix output, balanced) |
| Housing material | Plywood Cabinet |
| 1.2mm Steel Grille | |
| Handles | 2 on sides |

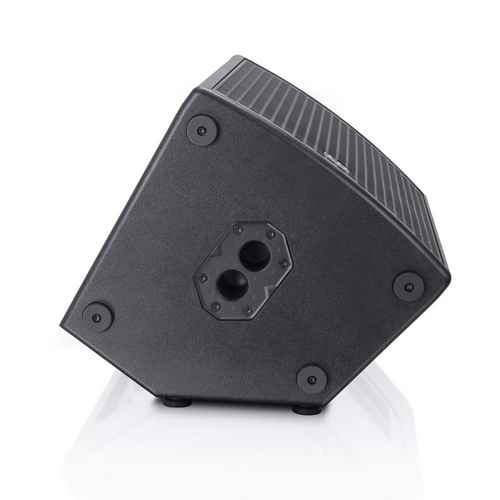

| Tripod/Pole Hole | Duo-tilt 0 and 7 degrees |

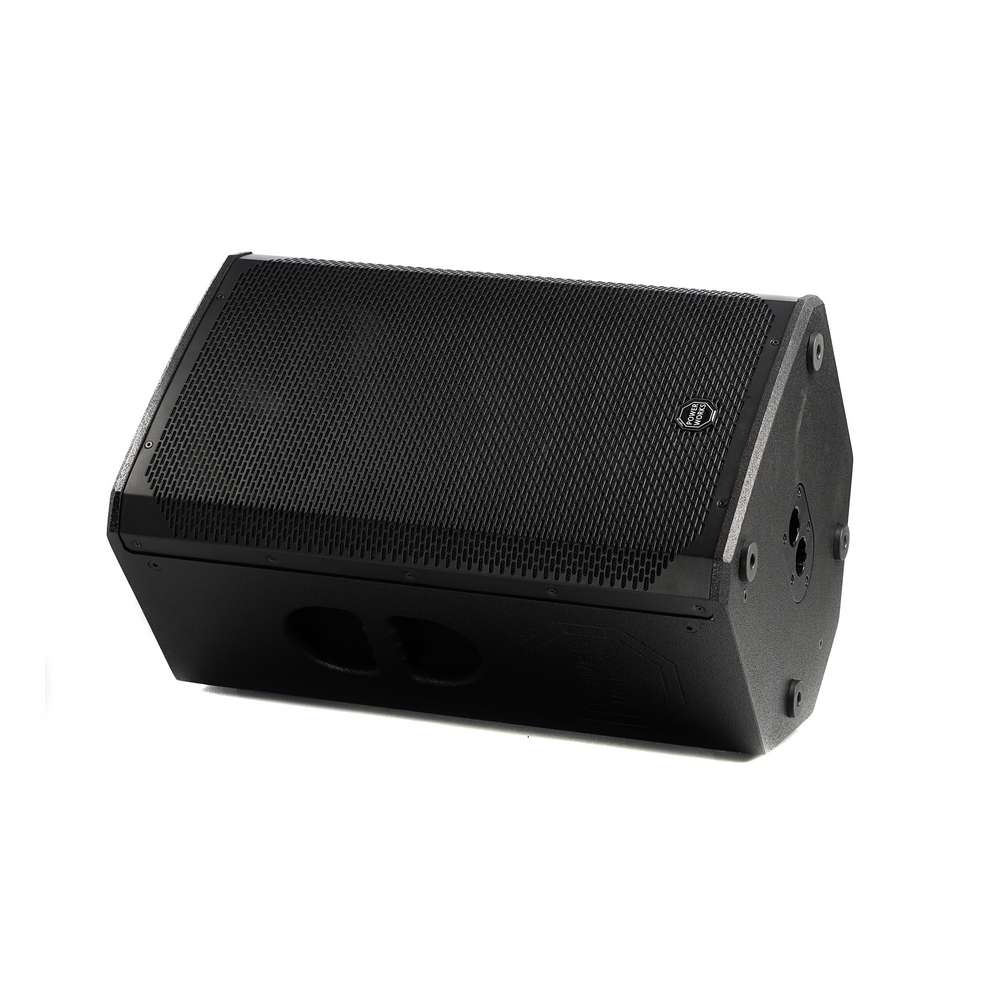

| Stage Monitor Use Angle | 30 degrees and 45 degrees |
| Speaker Size (WxHxD) | 450 x 687 x 465 mm |
| Packing Size (WxHxD) | 490 x 695 x 475 mm |
| Speaker Weight | 20.4 kg |
| Carton Weight | 21.4 kg |
