The ZETHUS Series ZETHUS-210BPW is a professional-grade full-range dual 10" line array loudspeaker that delivers exceptional audio performance. Equipped with a built-in class-D power amplifier, it generates an impressive 550W continuous and 1100W peak power at 4Ω. The onboard digital signal processor (DSP) provides excellent system optimization and EQ capabilities. With a frequency range of 52 Hz to 19K, this full-range speaker ensures a wide and accurate sound reproduction.
The Sound Town ZETHUS-210BPW line array speaker offers multiple flying points, allowing for flexible mounting and flying options. You can stack up to 8 ZETHUS-210BPW line array speakers together and secure them using the rigging hardware on the side panels. This configuration ensures precise sound projection and an immersive experience, even at high volumes. The speaker features a sturdy all birch plywood cabinet, while its aluminum extrusion rigging hardware and heavy-duty components make it suitable for touring applications.
For enhanced bass performance, the ZETHUS-210BPW line array speaker can be combined with the powered ZETHUS-118SPW subwoofer using the ZETHUS-210FF flying frame (subwoofer and flying frame sold separately) for a versatile and customizable system that delivers massive power and bass providing an immersive sound performance, even at high volumes.
Model | ZETHUS-210BPW |
Active / Passive | Active |
Frequency Range |
47 Hz - 19 kHz |
Frequency Response | 52 Hz - 19 kHz |
Sensitivity | 103 dB |
SPL Max | 130 dB |
Dispersion | 120º x 15º (H x V) |
Configuration | Compact dual 10" active full-range line array loudspeaker |
Transducer | LF: 2 x 10" woofer, HF: 2 x 1.4" diaphragm |
Voice Coil | 2.5" |
Magnet | 50 oz |
Impedance | 4Ω Nominal |
Power Handling | 550W Continuous / 1100W Peak |
Cabinet Construction | High-grade 100% birch plywood |
Mounting | Compact line array aluminum hardware / Optional flying frame (ZETHUS-210FF) |
Finish | Texture coating |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | Class-D amplifier with DSP |
Input | 2 x 1/4" & XLR combo, 1/8" AUX, Bluetooth |
Output | 1 x XLR mixed out |
Control | Volume, DSP (presetting, EQ, crossover, limit) |
Indicator | -- |
Voltage | Neutrik PowerCON in & out 100V-240V (50-60 Hz) |

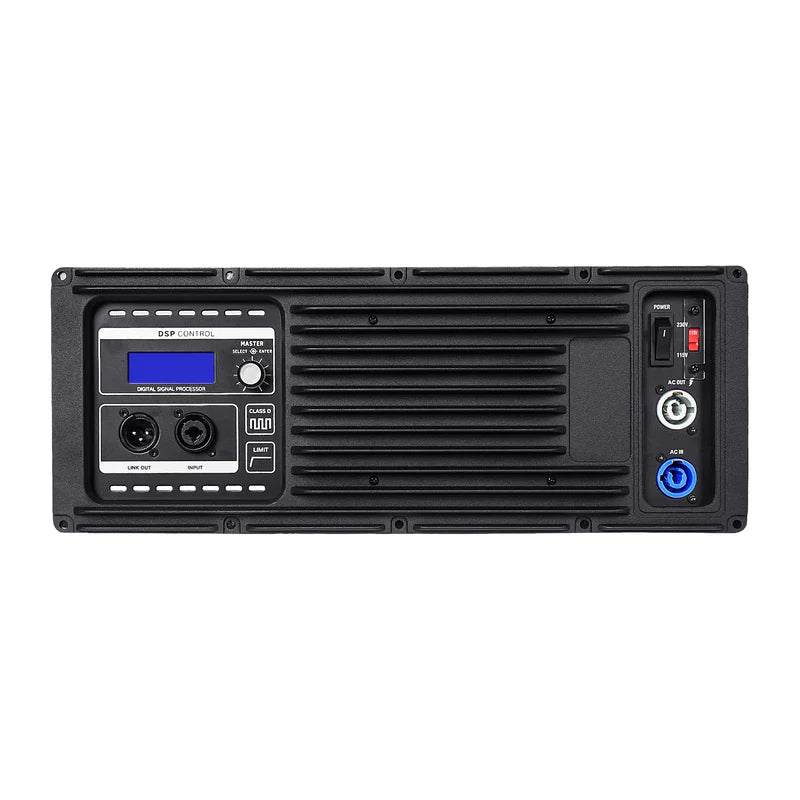

Plate Amp Parts# | STPA-760LA |
Crossover Parts# | XO-Z210 |
High Frequency Driver Parts# | STHF-3403T |
Low Frequency Woofer Parts# | STLF-10Z |
