SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
111 dB
HORIZONTAL COVERAGE ANGLE:
110°
VERTICAL COVERAGE ANGLE:
70°
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

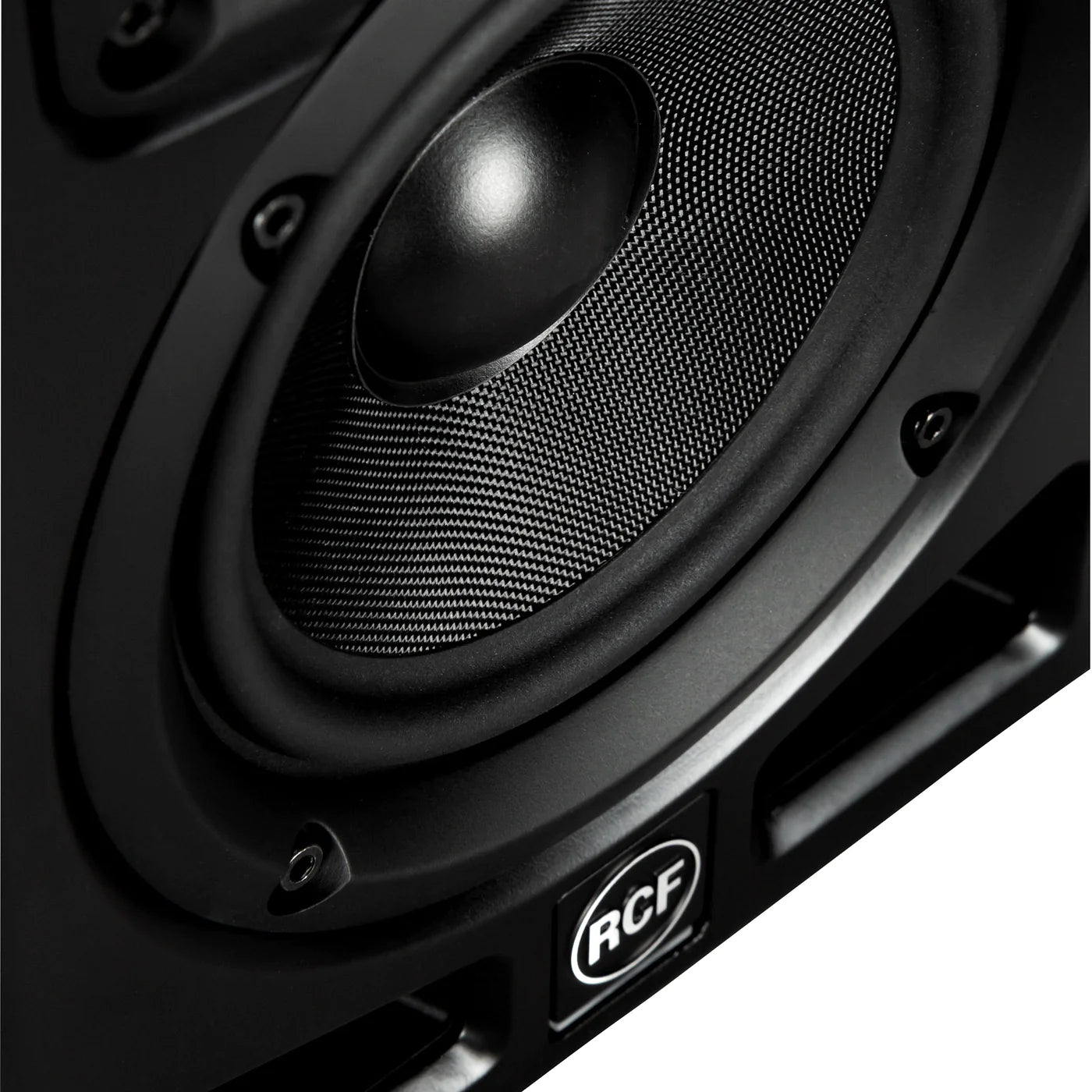

WOOFER:
8'', 1.5'' v.c

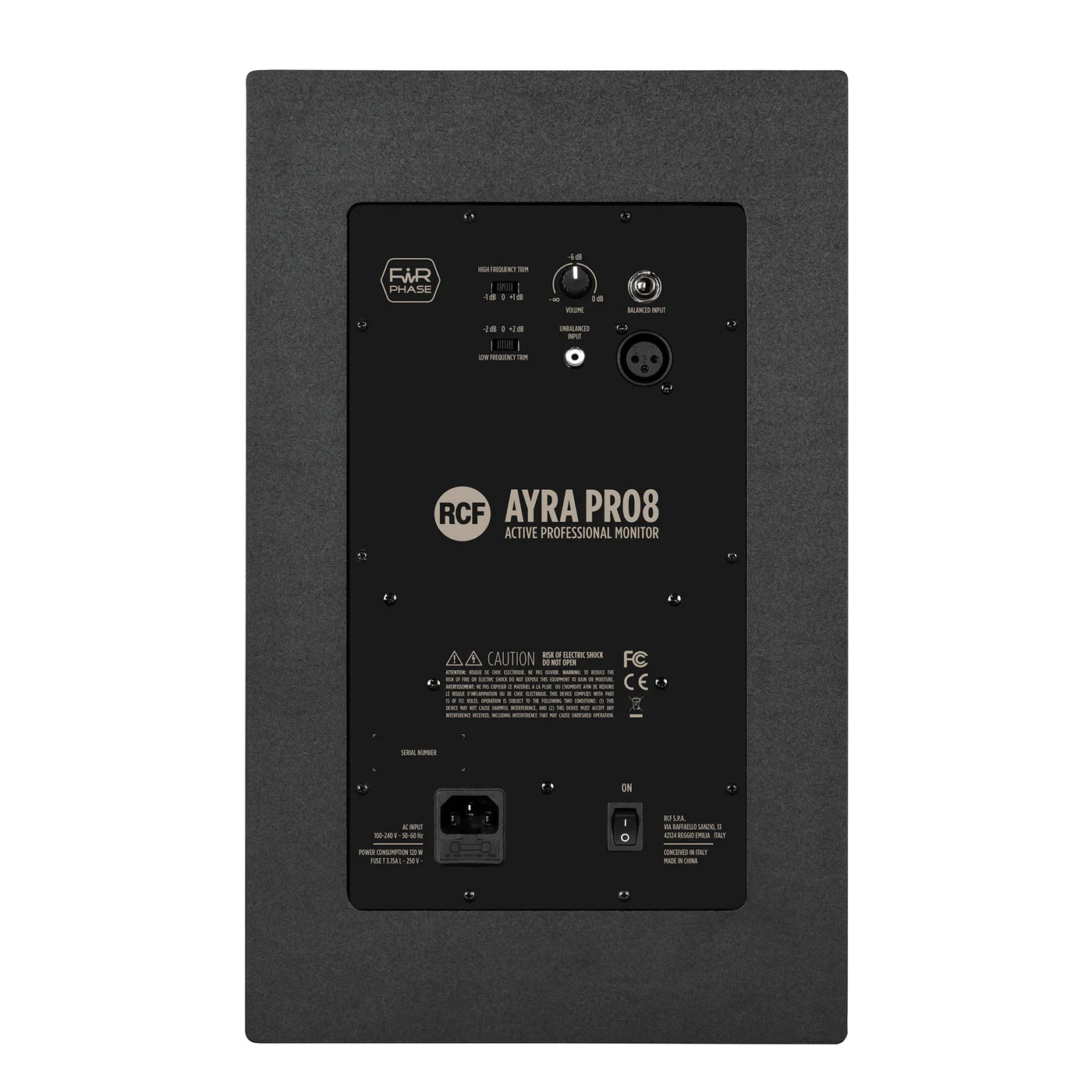

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, Jack, RCA
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
2000Hz
LIMITER:
Soft Limiter
CONTROLS:
HF Adjust -1dB,0,+1dBLF Adjust -2dB,0,+2dB
Power section
TOTAL POWER:
280 W Peak, 140 W RMS
HIGH FREQUENCIES:
80 W Peak, 40 W RMS
LOW FREQUENCIES:
200 W Peak, 100 W RMS
CONNECTIONS:
XLR, Jack, RCA
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
MDF
COLOR:
Black - RAL 9005
Size
HEIGHT:
410 mm / 16.14 inches
WIDTH:
253 mm / 9.96 inches
DEPTH:
320 mm / 12.6 inches
WEIGHT:
8.6 kg / 18.96 lbs
Shipping informations
PACKAGE HEIGHT:
510 mm / 20.08 inches
PACKAGE WIDTH:
416 mm / 16.38 inches
PACKAGE DEPTH:
329 mm / 12.95 inches
PACKAGE WEIGHT:
9.5 kg / 20.94 lbs
