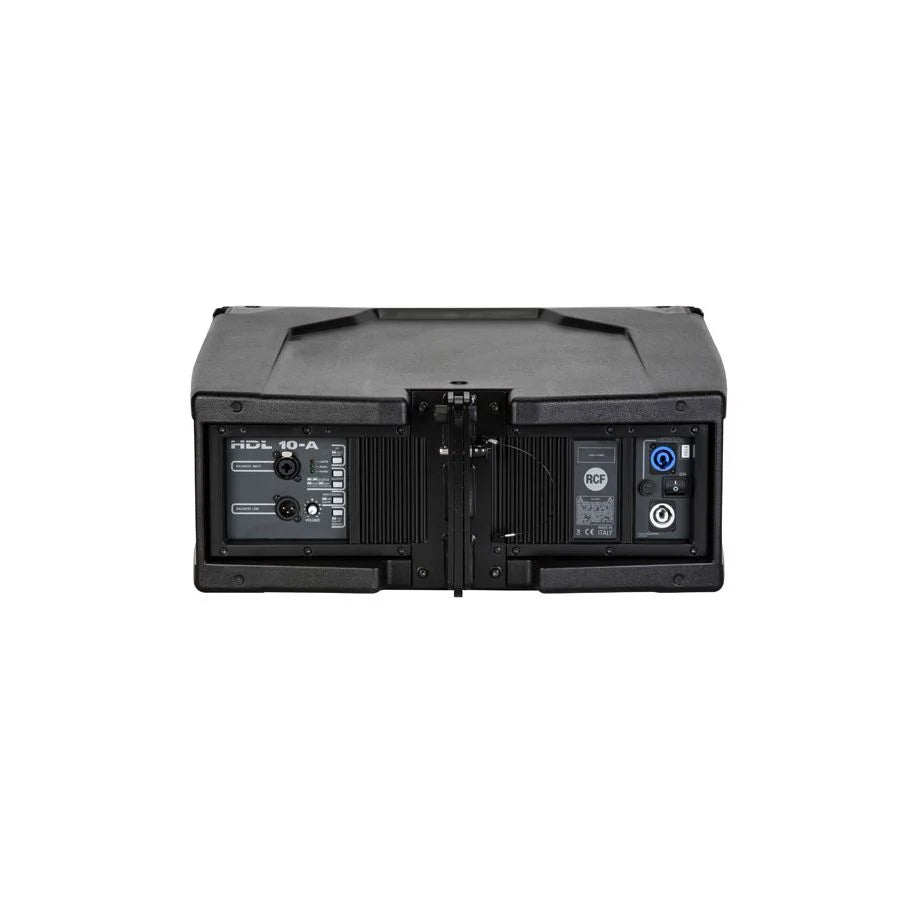

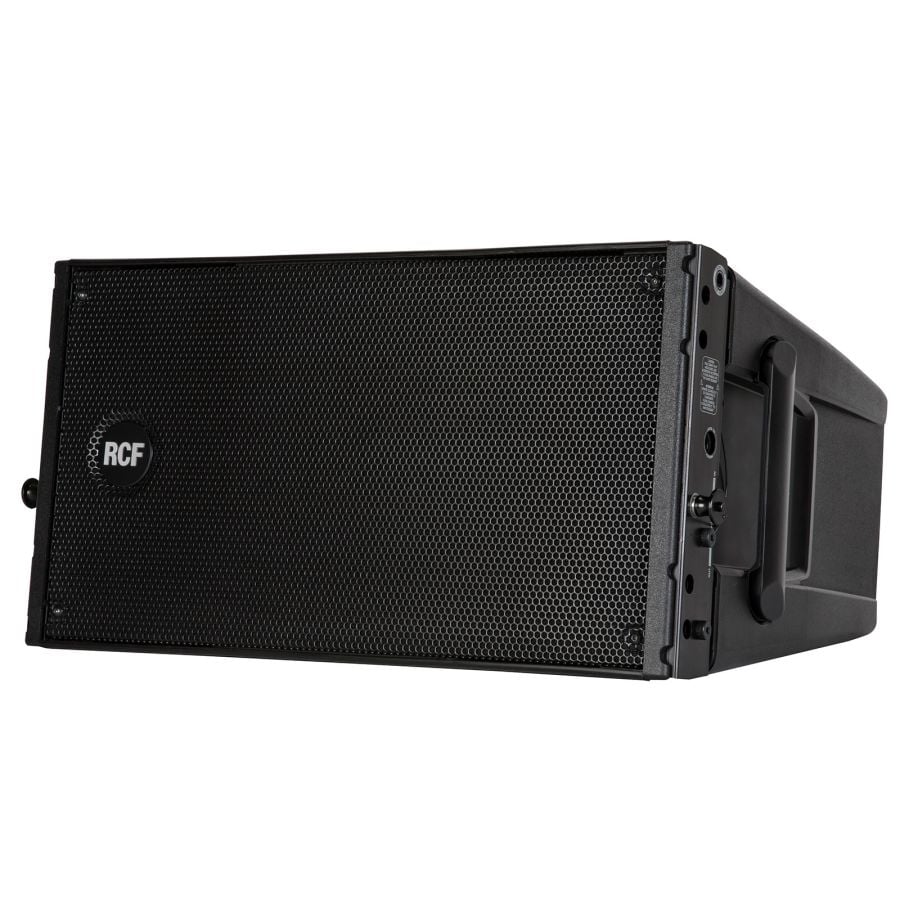

RCF HDL-10A
RCF HDL-10A
Regular price
R 55,000.00 ZAR
Regular price
Sale price
R 55,000.00 ZAR
Unit price
/
per
Secure Delivery In All Orders
Secure Checkout & Payments
Low in Stock, Order Soon!
ORDER ON WHATSAPP
Couldn't load pickup availability
Payment methods
Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.
Features
- 1400 Watt Peak power - 700 Watt RMS
- 133 dB max SPL
- 65 Hz 20 kHz frequency response
- 2 x 8" Woofers
- 1 x 2" Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Acoustical Specifications
- Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
- Max SPL: 133 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 15°
- Compression Driver: 2", 2.5" v.c.
- Woofer: 2 x 8", 2.0" v.c.
Input/Output Section
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
Processor Section
- Crossover frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter

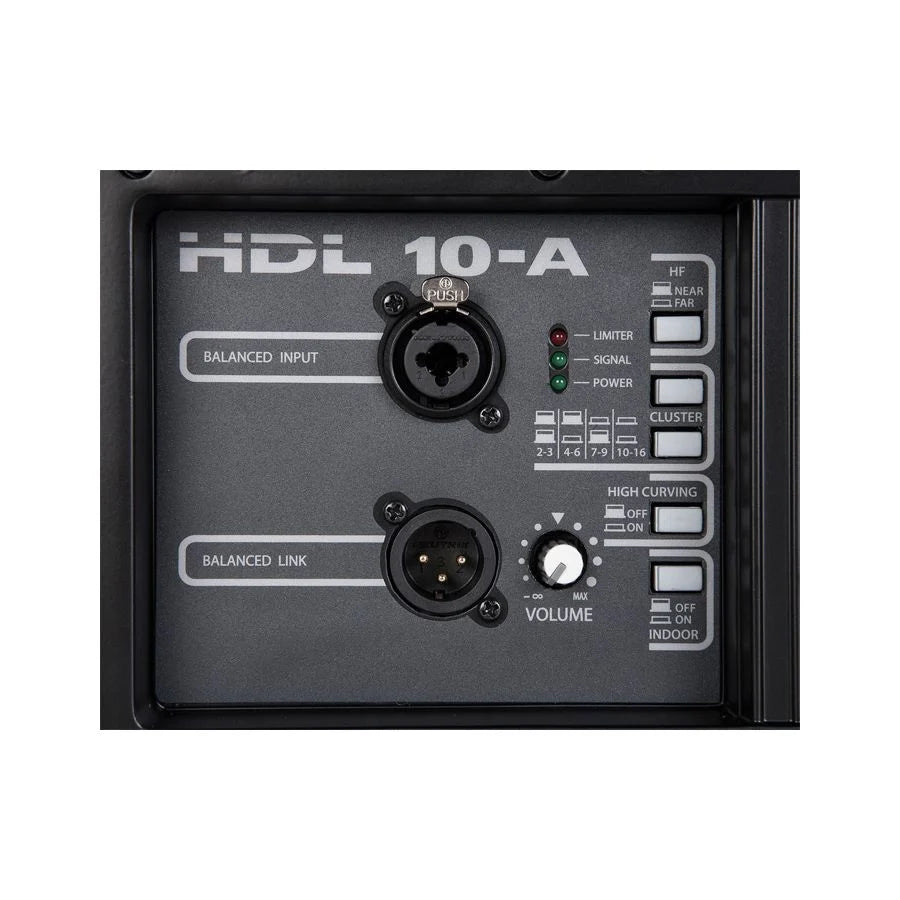

- Controls: Cluster, HF, High curving, Indoor
Amplifier Specifications
- Total power: 1400 W PEAK
- High frequencies: 400 W PEAK
- Low frequencies: 1000 W PEAK
- Total power: 700 W RMS
- High frequencies: 200 W RMS
- Low frequencies: 500 W RMS
