Sennheiser XSW-D PORTABLE INTERVIEW SET

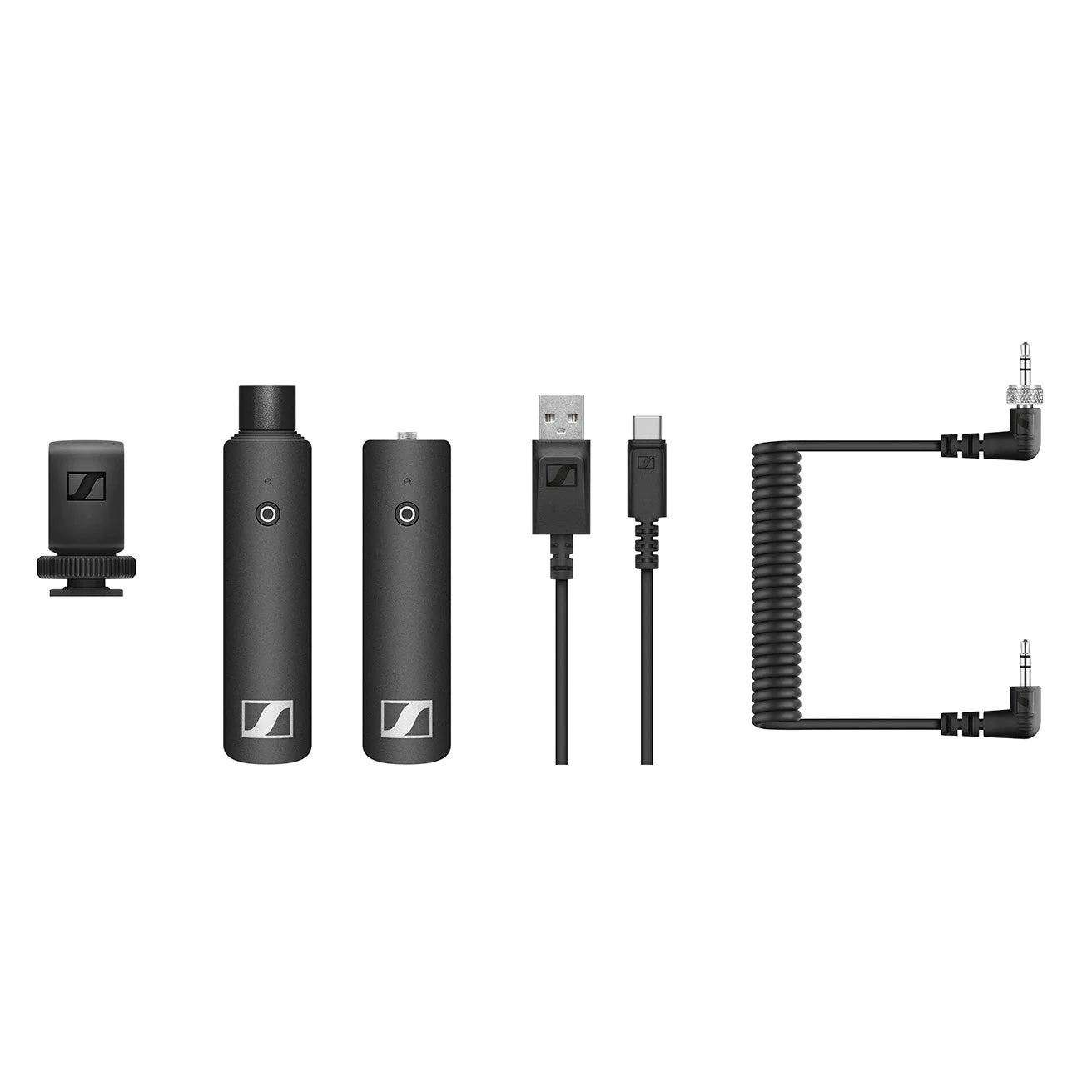

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an XLR transmitter and a 3.5mm (1/8”) receiver, this elegant solution makes capturing interviews with a dynamic handheld microphone easier than ever before while maintaining a reliable connection.

 FEATURES

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver


SPECIFICATIONS

Dimensions

• XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
• XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
• XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
• XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
• XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
• XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
• XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

• THD, total harmonic distortion - < 0.1 %
• Charging time - typ. 3 h
• Audio output - max. 12 dBu
• Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Signal-to-noise ratio - ≥ 106 dB
• Operating time - up to 5 h
• Modulation - GFSK with TDMA
• Battery Specification -  Li-Ion
• Capacity - 850 mAh
• Codecs - aptX® Live
• Frequency range - 2,400 - 2,483.5MHz
• Max. Input voltage - typ. 5.0 V
• Transmission power - max. 10 mW
• Voltage - 3.7 V
• Operating relative humidity - 95 % (non-condensing)
• Latency - < 4 ms
• Temperature Range - 0 °C - 60 °C (32 °F - 140 °F)

Audio frequency response

• 3.5 mm Jack/XLR: 80 - 18,000 Hz
• 6.3 mm Jack: 10 - 18,000 Hz
