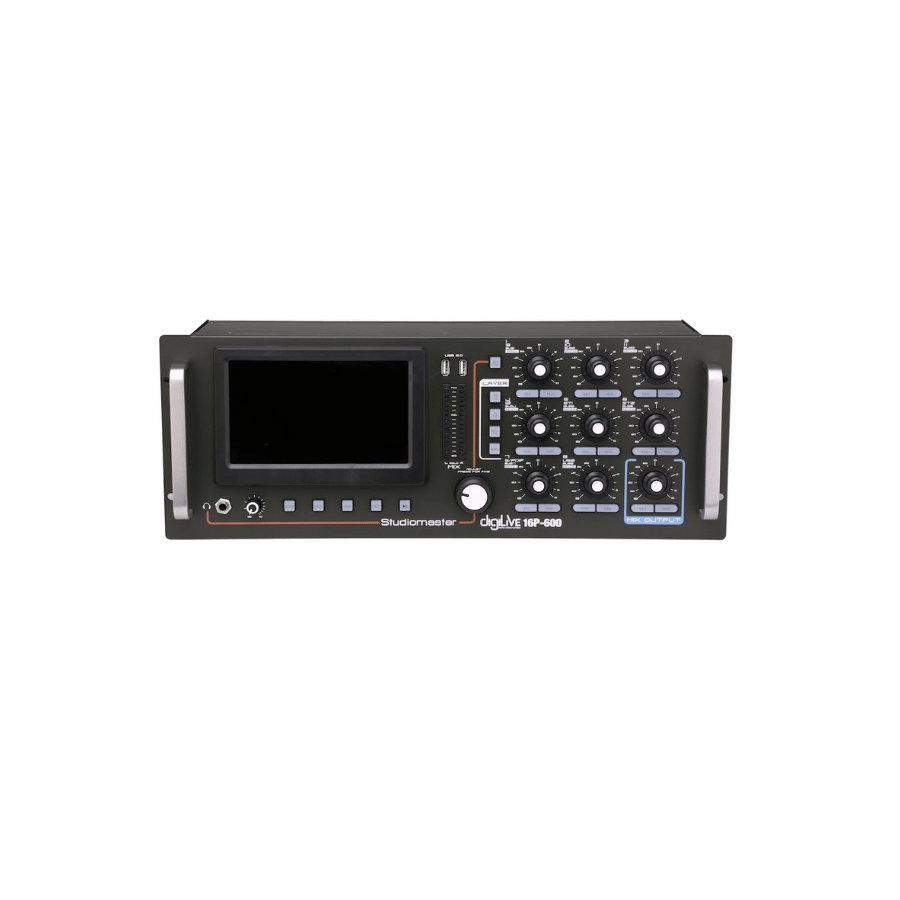

Studiomaster Digilive 16P-600

• 600 watt digital power amplifier
• 16 input with 16 internal busses
• 12 digital gain mic input channels
• 2 stereo inputs
• 4 configurable smart outputs
• Ultra compact unit size
• 7″ high resolution touch screen
• Advanced hybrid user interface

Specifications:

Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 4 (assignable balanced XLR)
Speaker Outputs: 4x 4-pole speaker connectors
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Operation system: Android system
Network: Yes, via included WiFi module
Remote control: iPad iOS via ‘Digilive Blackbox’ app
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
Amplifier Power: 4x 150 watts (RMS)
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording, scene/setting storage and system updates
Power Supply: 100-120V/ 200-240V ~ 50/60Hz IEC power supply
