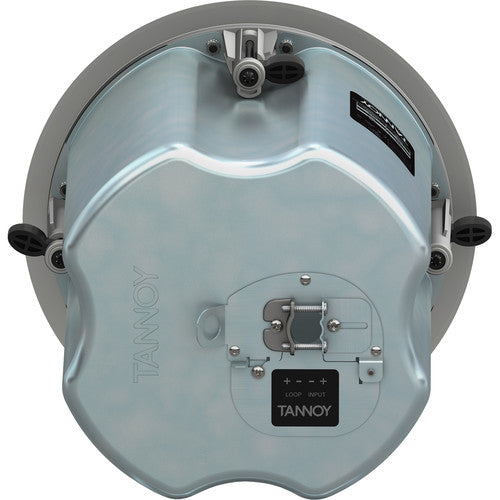

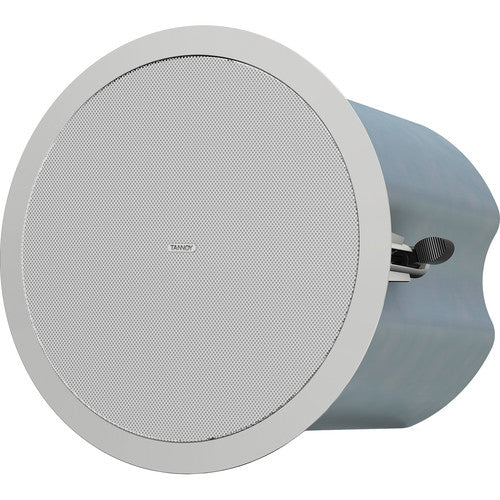

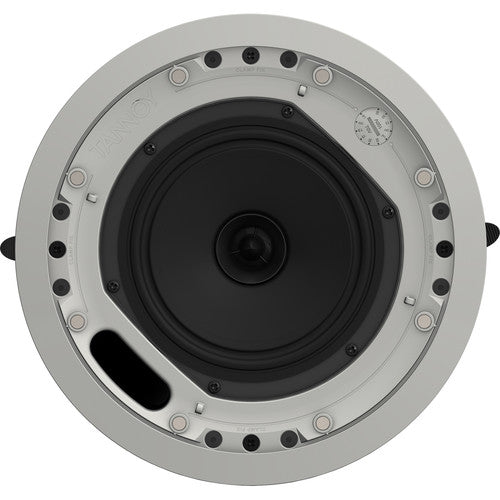

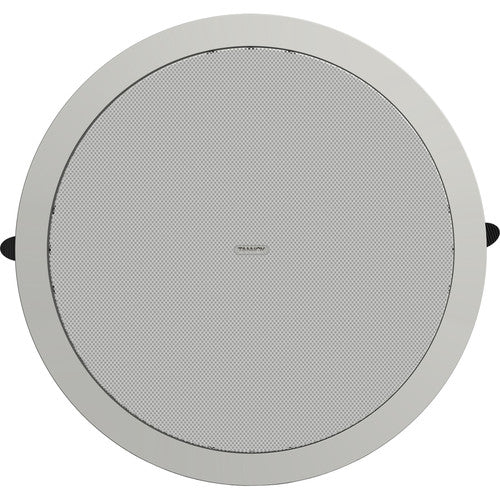

Tannoy CMS603DCBM
Tannoy CMS603DCBM
Tannoy CMS603DCBM
Tannoy CMS603DCBM
Tannoy CMS603DCBM

This pair of 6" Full-Range Ceiling Loudspeakers from Tannoy includes two full-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. Based on a dual-concentric point-source driver, these blind-mount installation speaker delivers wide and consistent broadband directivity, intelligibility, and an accurate and linear response.

Driver
6.5" / 165 mm dual concentric Omnimagnet driver
Low Frequency Driver
1.75" / 44 mm voice coil, treated multi-fiber paper pulp cone
High Frequency Driver
1" / 25 mm PEI dome
Frequency Response
75 Hz to 30 kHz at -3 dB
Frequency Range
50 Hz to 30 kHz at -10 dB
System Sensitivity
91 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle
90°
Power Handling
Average: 80 W
Program: 160 W
Peak: 320 W
Recommended Amplifier Power
160 W @ 16 Ohms
Nominal Impedance
16 Ohms
Maximum SPL
Average: 110 dB
Peak: 116 dB
Transformer Taps
70 V: 60 W (83 Ohms), 30 W (165 Ohms), 15 W (330 Ohms), 7.5 W (660 Ohms), OFF & low impedance operation
100 V: 60 W (165 Ohms), 30 W (330 Ohms), 15 W (660 Ohms), OFF & low impedance operation
Enclosure
Backcan: Zinc-plated steel
Baffle: Reflex-loaded UL 94V-0 rated ABS
Grille: Steel, with weather-resistant coating
Safety Features
Safety ring located at rear of enclosure for load bearing safety bond
Clamping Characteristics
Security toggle clamp
Clamping Range: 0.4 - 2.4" / 1 - 6 cm
Recommended Clamp Torque: 1.5 Nm
Mount
Blind mount complete with fixed backcan
Cable Entry
Cable clamp & squeeze connector for conduit up to 0.9" / 22 mm
Connectors
Removable locking screw terminals with "loop thru"
Compliance
UL-1480, UL-2043, CE
Dimensions
Bezel Diameter: 10.8" / 27.4 cm
Front of Ceiling to Rear of Backcan: 10.1" / 25.6 cm
Front of Ceiling to Top of Safety Loop: 10.8" / 27.3 cm
Hole Cutout Diameter: 10" / 25.3 cm

Tannoy CMS603DCBM

R 5,187.00
Free Shipping
Secure Checkout
24/7 Support
Loved By Many
Availability

Order on WhatsApp
Shipping calculated at checkout.

This pair of 6" Full-Range Ceiling Loudspeakers from Tannoy includes two full-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. Based on a dual-concentric point-source driver, these blind-mount installation speaker delivers wide and consistent broadband directivity, intelligibility, and an accurate and linear response.

Driver
6.5" / 165 mm dual concentric Omnimagnet driver
Low Frequency Driver
1.75" / 44 mm voice coil, treated multi-fiber paper pulp cone
High Frequency Driver
1" / 25 mm PEI dome
Frequency Response
75 Hz to 30 kHz at -3 dB
Frequency Range
50 Hz to 30 kHz at -10 dB
System Sensitivity
91 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle
90°
Power Handling
Average: 80 W
Program: 160 W
Peak: 320 W
Recommended Amplifier Power
160 W @ 16 Ohms
Nominal Impedance
16 Ohms
Maximum SPL
Average: 110 dB
Peak: 116 dB
Transformer Taps
70 V: 60 W (83 Ohms), 30 W (165 Ohms), 15 W (330 Ohms), 7.5 W (660 Ohms), OFF & low impedance operation
100 V: 60 W (165 Ohms), 30 W (330 Ohms), 15 W (660 Ohms), OFF & low impedance operation
Enclosure
Backcan: Zinc-plated steel
Baffle: Reflex-loaded UL 94V-0 rated ABS
Grille: Steel, with weather-resistant coating
Safety Features
Safety ring located at rear of enclosure for load bearing safety bond
Clamping Characteristics
Security toggle clamp
Clamping Range: 0.4 - 2.4" / 1 - 6 cm
Recommended Clamp Torque: 1.5 Nm
Mount
Blind mount complete with fixed backcan
Cable Entry
Cable clamp & squeeze connector for conduit up to 0.9" / 22 mm
Connectors
Removable locking screw terminals with "loop thru"
Compliance
UL-1480, UL-2043, CE
Dimensions
Bezel Diameter: 10.8" / 27.4 cm
Front of Ceiling to Rear of Backcan: 10.1" / 25.6 cm
Front of Ceiling to Top of Safety Loop: 10.8" / 27.3 cm
Hole Cutout Diameter: 10" / 25.3 cm
