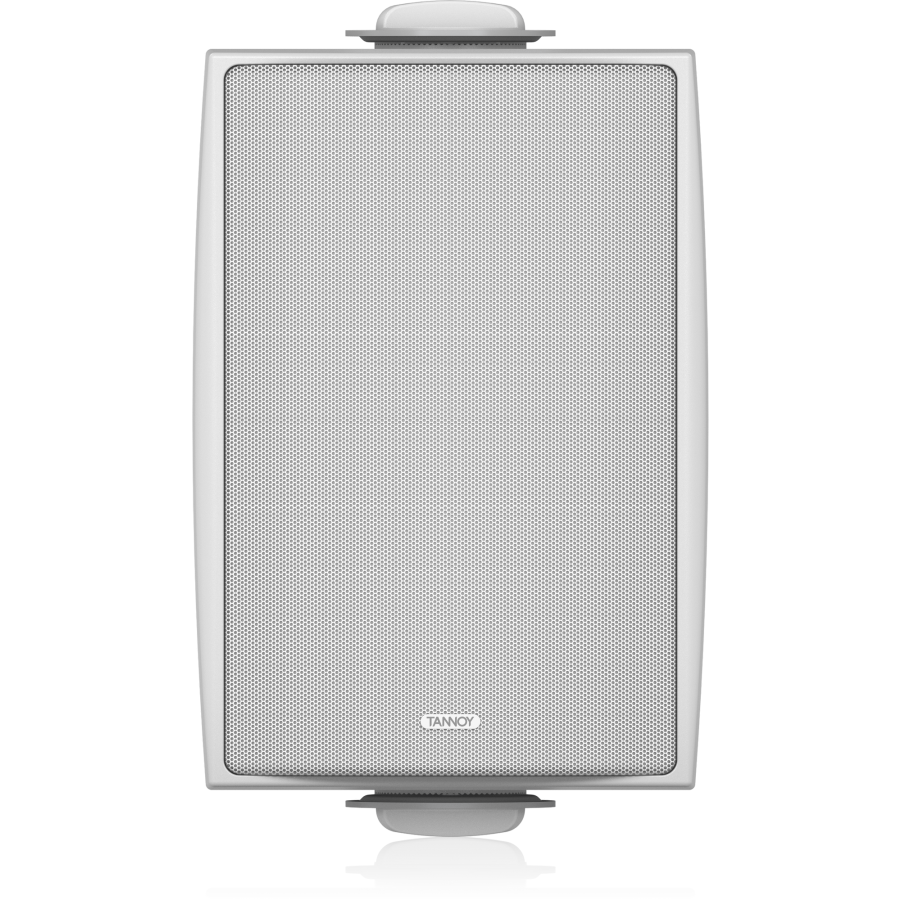

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4T-WH is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance.
The DVS 4T-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 4T (EN 54)-WH the perfect choice where safety is a top priority.
| Frequency response (-3 dB)1 |
75 Hz - 20 kHz |
| Frequency response (-10 dB)1 |
60 Hz - 30 kHz |
| System sensitivity (1 W @ 1 m)2 |
84 dB |
| Dispersion (-6 dB) |
110 degrees conical |
| Transducers |
Coaxial |
| Low frequency |
100 mm (4.00") mineral |
| High frequency |
20 mm (0.79) |
| Crossover |
3.9 kHz - 2nd order LF, 2nd order HF |
| Directivity (Q) |
6.5 averaged 1 kHz to 10 kHz |
| Directivity (DI) |
5.3 averaged 1 kHz to 10 kHz |
| Rated maximum SPL 2 |
100 dB (average) |
Transformer Version
| Transformer Taps | |
| Maximum wire gauge for connector |
2.5 mm CSA (AWG12) |
| Safety Agency Ratings |
UL-1480, CE |
Power Handling
| Average |
40 W |
| Programme |
80 W |
| Peak |
160 W |
| Recommended amplifier power |
80 W @ 6 Ohms |
| Nominal impedance |
6 Ohms |
Construction
| Enclosure |
ABS |
| Grille |
Aluminium, painted |
| Connectors |
Euroblock type removable locking connector with screw terminals with “loop through” facility |
| Supplied accessories |
Yoke bracket |
| Packed quantity |
2 |
| Dimensions (H x W x D) |
277.0 x 170.4 x 165.6 mm |
