Whether you're a songwriter, producer or podcaster starting on your journey, looking to take their production quality to the next level, the Trumix TM-10 is the perfect USB Audio Interface for you.

With a design that's been articulately crafted to ensure high-quality recordings straight out of the box, the Trumix TM-10 delivers simple and reliable functionality to handle a vast selection of environments and scenarios at an incredibly affordable price.

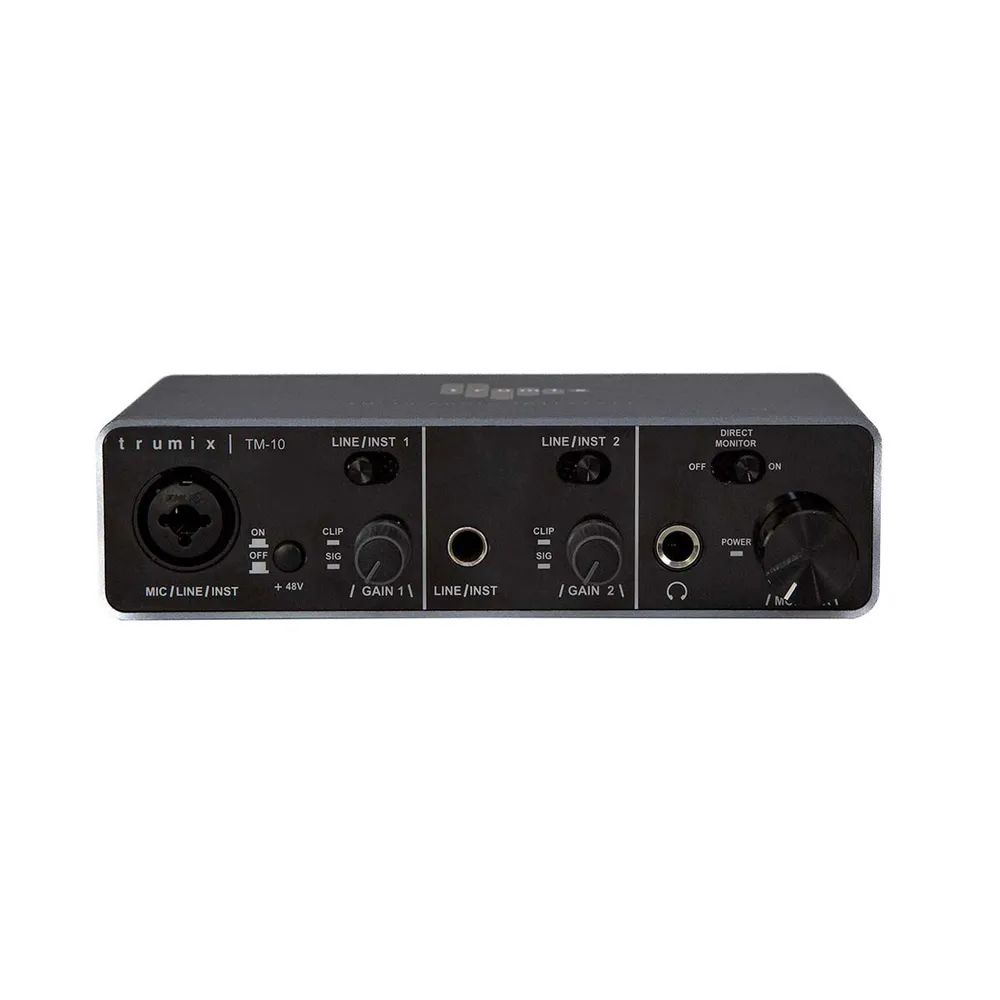

Showcasing a single XLR microphone input and 1/4" instrument input, the TM-10 is the ideal choice for the creative on the go, providing sublime results across a wide range of applications.

Trumix TM-10 USB Audio Interface Specifications:

• PMT Recommendation: For Microsoft Windows users, we recommend a simple download of the latest ASIO4ALL drivers to ensure the best performance/compatiblity from your new Trumix interface.
• Sampling Precision: 16Bit & 24Bit ADC and DAC
• Supported Sample Rates: DAC: 44.1 kHz, 48 kHz / ADC:44.1 kHz, 48 kHz, 96kHz
• USB: 1 x USB 2.0 Type C connector
• LEDS: Red/Green Gain Indicators

Analogue Input 1

• Connector: Balanced, via female 3-pin XLR on front panel / INST mode: unbalanced, 2-pole (TS) / LINE mode: balanced (TRS)
• Phantom power: 48 V phantom power switch

Analogue Input 2

• Connector: ¼" (6.35 mm) jack socket on front panel / INST mode: unbalanced, 2-pole (TS) / LINE mode: balanced (TRS)
• Line/Instrument Switching: Front panel switch

Microphone Input

• Dynamic Range: 95 dB (A-Weighted)
• Frequency Response: 20 Hz to 20 kHz ±1 dB
• THD+N: <0.01% (1kHz@0dBu)
• Noise EIN: -110dBu (A-Weighted)
• Maximum Input Level: +8 dBu at Minimum Gain
• Gain Range: 50 dB
• Input Impedance: 3 kohms

Line Input

• Dynamic Range: 95 dB (A-Weighted)
• Frequency Response: 20 Hz to 20 kHz ±1 dB
• THD+N: <0.01% (1kHz@0dBu)
• Maximum Input Level: +19 dBu at Minimum Gain
• Gain Range: 50 dB
• Input Impedance: 20 kohms

Instrument Input

• Dynamic Range: 95dB (A-Weighted)
• Frequency Response: 20 Hz to 20 kHz ±1 dB
• THD+N: <0.03% (1kHz@0dBu)
• Maximum Input Level: +11dBu at Minimum Gain
• Gain Range: 45 dB
• Input Impedance: 1 Mohms

Analogue Outputs

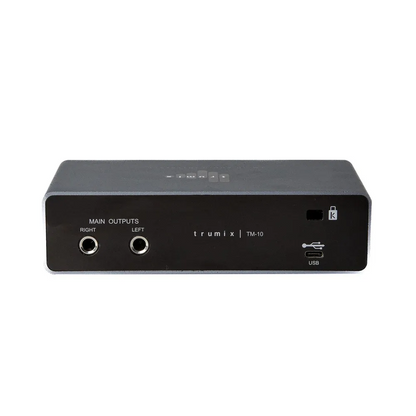

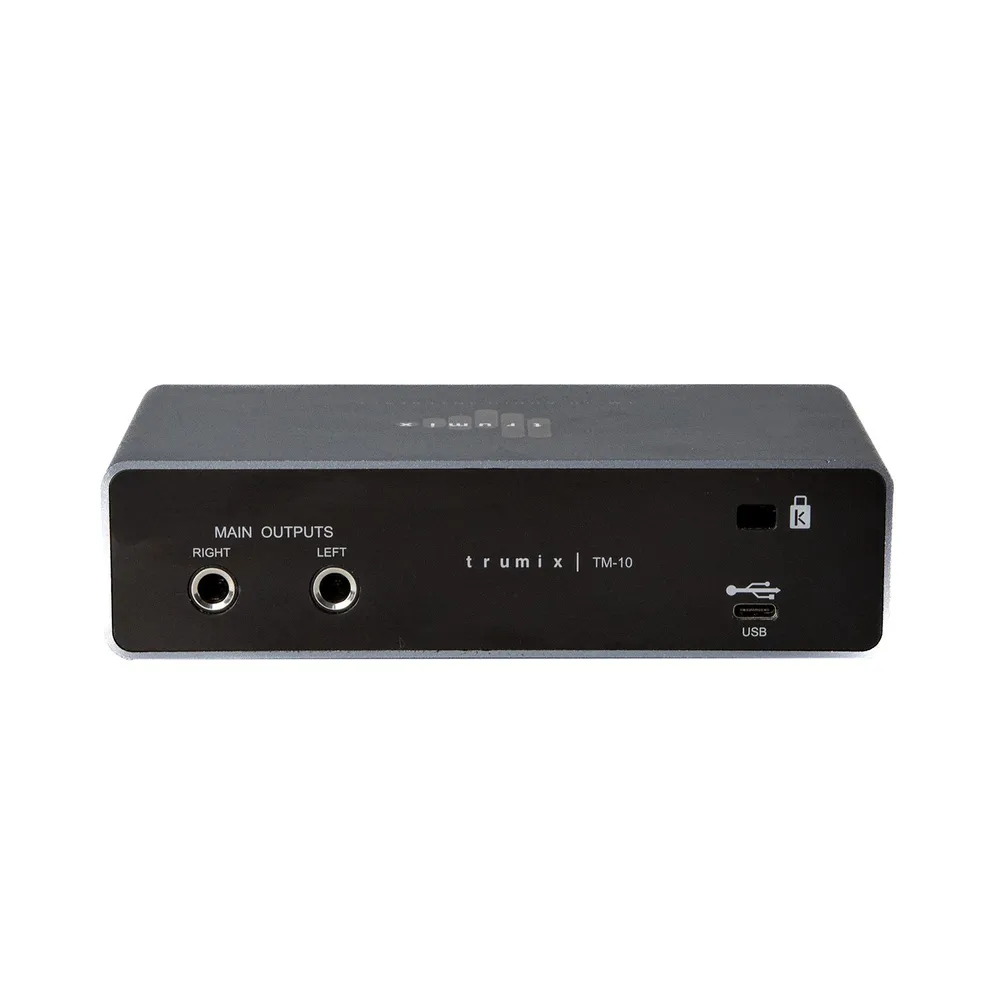

• Main Outputs: Balanced, 2 x ¼” TRS jacks on rear panel
• Stereo Headphone Output: ¼” TRS jack on front panel
• Output Level Control (main and headphone): On front panel
• Direct Monitoring: Front panel switch; allows zero-latency monitoring of inputs

Line Outputs

• Dynamic Range: 95 dB (A-Weighted)
• Maximum Output Level (0 dBFS): +14 dBu  Balanced Outputs
• THD+N: <0.01%
• Output Impedance: 221 ohms

Headphone Output

• Dynamic Range: 90 dB (A-Weighted)
• Maximum Output Level: +12 dBu
• THD+N: <0.01%
• Headphone Impedance: 30-300ohm
