Vivitek’s NovoProjector is an All-in-One innovative projection solution with built-in NovoConnect wireless collaboration capabilities. The image is superb and offers 4,800 lumen of brightness in 1080p resolution. The NovoConnect embedded collaboration tools offer wireless presenting and screen mirroring, annotation and moderation functions combined with the ability to display four users simultaneously and host multiple participants. Its cross-platform compatibility assures smooth connection with Windows, macOS, Ubuntu, Android, Chromebook and iOS devices. The NovoProjector DH858N works seamlessly with the optional Launcher modules for guests in order to enable direct wireless connection from laptops to the NovoProjector, while the NovoConnect app can be used for employees and recurring users for both laptop as well as mobile devices. The DH858N is ideally suited for medium-sized meeting rooms.
KEY FEATURES
- Embedded NovoConnect Wireless Collaboration solution, available in corporate and education edition Wireless presenting and screen mirroring; Annotation and moderation ; Display up to four screens simultaneously; Easy to use NovoConnect SW/App, Launcher, Web portal to share the content from any device (BOYD); Receive duplicate screen over the network; Dual networks to separate guest and employee networks with password-protected configuration.
- Offers up to 300″ image with 4,800 lumens of brightness, 1080p native resolution and 15,000:1 contrast ratio
- DLP® and BrilliantColor™ technology
- Lamp life time up to 4,000 hours in Eco mode
- Horizontal and Vertical keystone with 4 corner geometric adjustment
- 1.5x zoom ratio for installation flexibility
- New On-screen display (OSD) control menu for ease of use and improved control over viewing options
- viviBlack enhances black level for higher contrast ratio
- Environmental friendly design and compliance
SPECIFICATIONS
Native Resolution | 1080p (1920 x 1080) |
Brightness | 4800 ANSI Lumens |
Contrast Ratio | 15,000:1 |
Max. Supported Resolution | WUXGA (1920×1200) @60Hz |
Native Aspect Ratio | 16:9 |
Lamp Life and Type | 1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W |
Display Type | Single Chip 0.65″ DLP Technology by TI |
Throw Ratio | 1.39 – 2.09 |
Image Size (Diagonal) | 26.7” – 334″ |
Projection Distance | 1.2 – 10m |
Projection Lens | F=2.42 – 2.97 , f=20.70 – 31.05mm |
Zoom Ratio | 1.5x |
Focus | 60 cm@80” |
Offset | 114.9% ±5% |
Keystone Correction | ±30 Degree; ±30 Steps |
Speakers | 10W (Mono) |
Vertical Scan Rate | 24 – 30Hz, 47 – 120Hz |
Horizontal Scan Rate | 15, 31 – 91.4kHz |
Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |

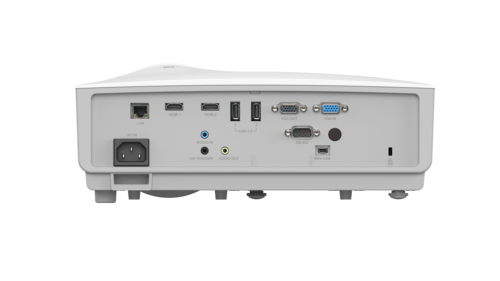

I/O Connection Ports | VGA-In (15pin D-Sub), HDMI (x2), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), IP Telnet Capable Over RJ-45, RS-232, USB A (Power (5V/1.5A), USB miniB (Service) |
Dimensions (W x D x H) | 314 x 213 x 126mm |
Weight | 3.4 kg |
Noise Level | 36dB/31dB (Normal/Eco. Mode) |
Power | 340W (Normal Mode), 270W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode) |
Control Software | PJ- Control V3.0.0.4 |
3D Ready(DLP link, PC+Video) | Yes |
Wireless | Yes |
Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
Optional Accessories | Spare Lamp P/N: SS-5811126482-VV, Remote Control P/N: 5042149001 |
