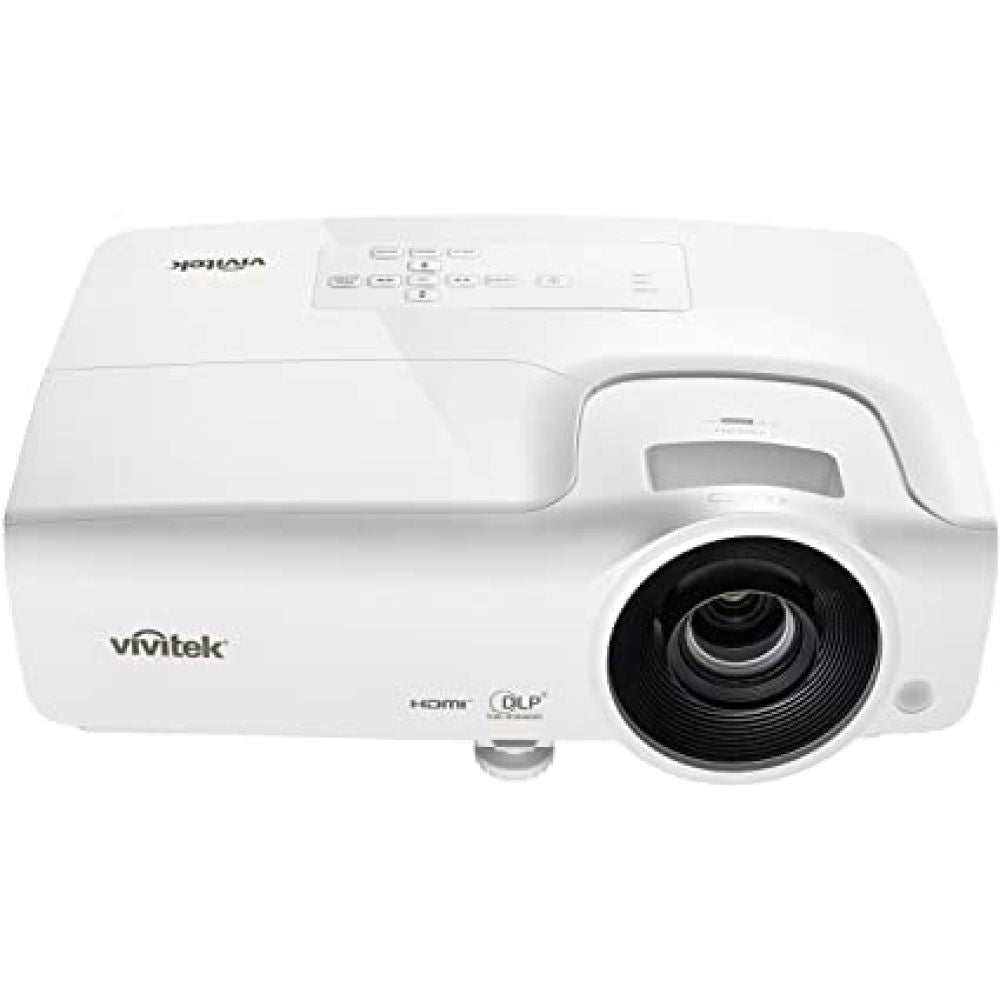

The Vivitek DX283- ST delivers exceptional digital images with a high degree of vibrancy thanks to 3600 lumens of brightness and a contrast ratio of 20,000:1 Featuring native XGA resolution the DX283-ST is designed for a wide variety of applications. Their compact size at just 2.6 kg allows for easy transportation between different meeting rooms or classrooms.
Key features
- DLP® technology with BrilliantColor™ for vibrant and rich picture quality
- 3600 lumens of brightness and 20,000:1 contrast ratio for clear, crisp and bright presentations
- XGA (1024 x 728) native resolution and support up to maximum WUXGA (1920×1200) resolution
- Compact and lightweight at 2.6kg for easy portability
- A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO)
- Audio ready with built-in 2 watt audio speaker, audio-in and audio-out ports
Specifications
| Native Resolution | XGA (1024 x 768) |
| Brightness | 3600 ANSI Lumens |
| Contrast Ratio | 20:000:1 |
| Max. Supported Resolution | WUXGA (1920 x1200) @60Hz |
| Native Aspect Ratio | 4:3 |
| Lamp Life and Type | 5,500 / 7,000 / 10,000 Hours (Normal / Eco. / Dynamic Eco. Mode), 210W |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.55” DMD |
| Throw Ratio | 0.63 : 1 |
| Image Size (Diagonal) | 50″ – 100″ |
| Projection Distance | 0.63m – 1.29m |
| Projection Lens | F=2.65, f=7.2mm |
| Keystone Correction | Vertical: +/-40° |
| Speakers | 2W |
| I/O Connection Ports | VGA-In (15pin D-Sub) (x2), HDMI Number of Ports (x2), S-Video, Composite Video, Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RS-232, USB miniB (Service) |
| Dimensions (W x D x H) | 331 x 244 x 105mm |
| Weight | 2.6 kg |
| Noise Level | 32dB / 29dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 210W (Eco. Mode), 250W (Normal Mode), <0.5W (Standby) |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Spare Lamp P/N: XX5810005600, Remote Control P/N: XX5040005400, Carrying Case P/N |
